| | 1973 |
| 400 Series | | Garden tractor |
|
Series map:
414
416
14.0hp
16.0hp
| Engine Detail |
| Kohler |
| gasoline |
| 1-cylinder |
| air-cooled |
| Displacement | 588 cc
35.89 ci
|
| Bore/Stroke | 3.75x3.25 inches
95 x 83 mm
|
| Power | 16 hp
11.9 kW
|
| Air cleaner | dry element
|
| Rated RPM | 3600
|
| Starter volts | 12
|

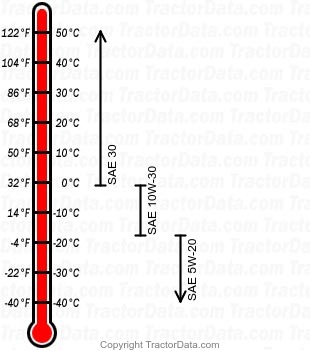

| Engine Oil |
|
| Oil capacity | 2 qts
1.9 L
|
| Oil change | 25 h
|
