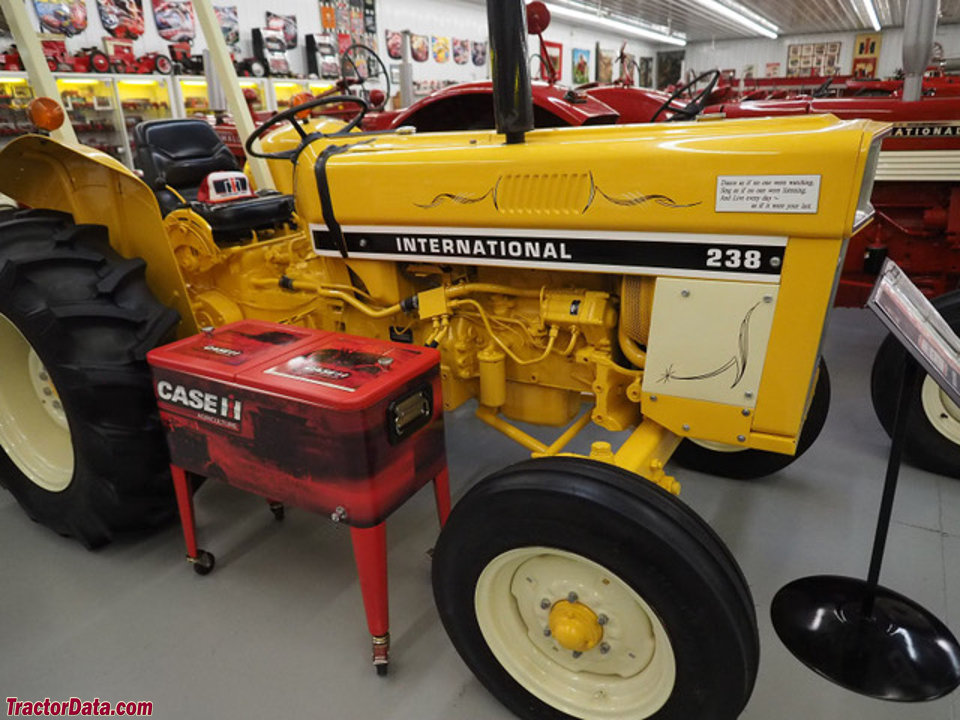

International Harvester 238
| | 1977 - 1982 |
| Industrial tractor |
|
| Production |
| Manufacturer | International Harvester
|
| Type | Industrial tractor
|
| Variants |
| 384 | ag utility tractor
|
| International Harvester 238 Power |
| Engine (gross) | 30 hp
22.4 kW
|
| Engine (net) | 28.3 hp
21.1 kW
|
| Mechanical |
| Chassis | 4x2 2WD
|
| Final drives | spiral bevel gear
|
| Differential lock | foot-operated rear lock
|
| Steering | power assist
|
| Brakes | disc
|
| Cab | Two-post ROPS. Canopy optional.
|
| Capacity |
| Fuel | 12 gal
45.4 L
|
| Hydraulic system | 9.3 gal
35.2 L
|
| Hydraulics |
| Type | gear pump
|
| Capacity | 9.3 gal
35.2 L
|
| Pressure | 2300 psi
158.6 bar
|
| Pump flow | 29.5 gpm
111.7 lpm
|
| Tractor hitch |
| Rear Type | 1
|
| Control | hydraulic draft control
|
| Power Take-off (PTO) |
| Rear PTO | live
|
| Clutch | dual-stage 229mm dry disc
|
| Rear RPM | 540
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 28
|
| Battery volts | 12
|
