International Harvester 238 Transmission

International Harvester 238 industrial tractor photo
1977 - 1982
Industrial tractor
Transmissions overview
8-speed sliding spur gear with mechanical reverser
Typesliding spur gear with mechanical reverser
Gears8 forward and reverse
Clutch279mm dry disc
Oil capacity37.2 qts
35.2 L
Four gears (1-4) in two ranges (low/high) with mechanical reverser.

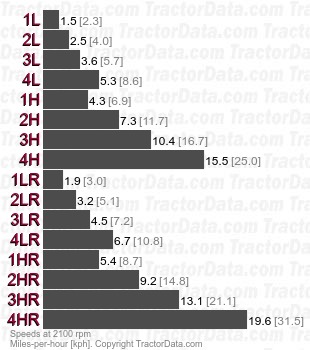

238  sliding spur gear with mechanical reverser speeds
Gears8 forward and 2 reverse
Optional 8-2 transmission.
