Ford 1841
|
|
| Production | |
| Manufacturer | Ford |
| Industrial tractor | |
| Variants | |
| 1811 | Select-O-Speed, no PTO or hydraulics |
| 1821 | Four-speed, no PTO or hydraulics |
| 1841 | Four-speed with PTO and hydraulics |
| 1871 | Select-O-Speed with PTO and hydraulics |
| 1881 | Select-O-Speed with multi-speed PTO and hydraulics |
| Ford 1841 Engines | |
| Ford 2.8L 4-cyl gasoline | |
| Ford 2.8L 4-cyl diesel | |
 Engine details ... |
| Ford 1841 Transmissions | |
| 4-speed unsynchronized gear | |
| 4-speed unsynchronized shuttle | |
 Transmission details ... |
| Ford 1841 Power | |
| Engine | 56.3 hp 42.0 kW |
| Mechanical | |
| Two-wheel drive | |
| Steering | 12x28 |
| Differential mechanical shoe brakes | |
| Open operator station | |
| Photos | |
 | |
 Ford 1841 photos... | |
| Capacity | |
| Fuel | 17 gal 64.3 L |
| Hydraulic system | 2 gal 7.6 L |
| Rear axle | 11.5 qts 10.9 L |
| Hydraulics | |
| Capacity | 2 gal 7.6 L |
| Pressure | 2000 psi 137.9 bar |
| Total flow | 4 gpm 15.1 lpm |
| Steering flow | 8 gpm 30.3 lpm |
| Steering press. | 1500 psi 103.4 bar |
| Power Take-off (PTO) | |
| Rear PTO | transmission |
| Rear RPM | 540 |
| Dimensions & Tires | |
| Wheelbase | 81.5 inches 207 cm |
| Weight | 3,800 lbs 1723 kg |
| Front tire | 7.50x16 |
| Rear tire | 12x28 |
 Full dimensions and tires ... | |
| Ford 1841 attachments | |

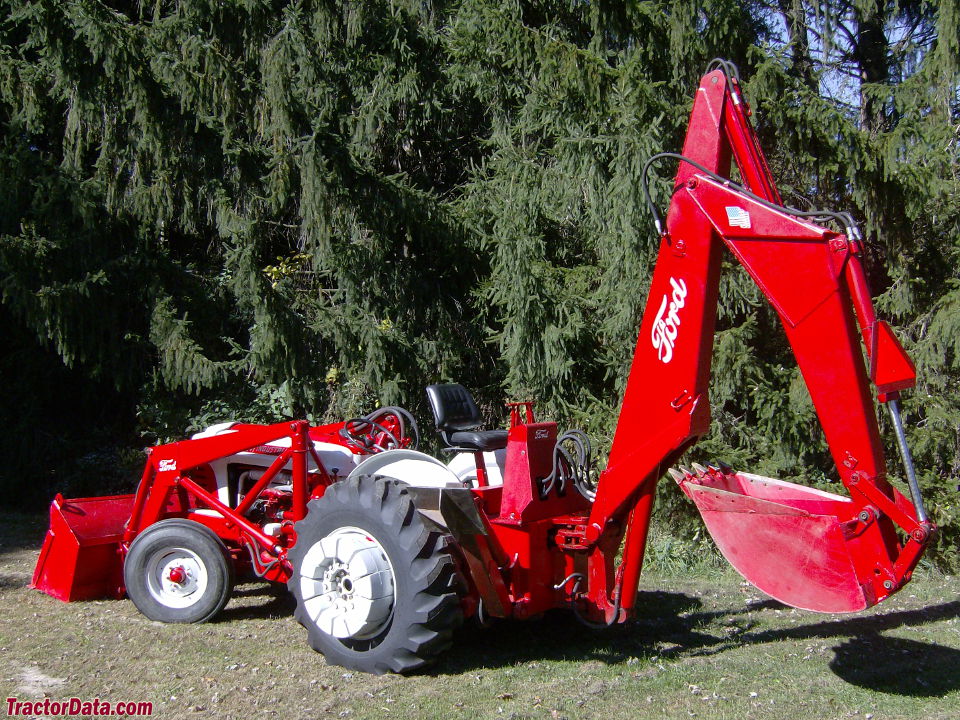

| front-end loader | |
| backhoe | |
 Attachment details ... |
| 1841 Serial Numbers | |
| Location: | Serial number stamped into the starter mount casting. |
| 1957 | 1001 |
| 1958 | 11977 |
| 1959 | 58312 |
| 1960 | 105943 |
| 1961 | 131427 |
| 1962 | 155531 |
FAQ: How to read a serial number table. | |
| Electrical | |
| Ground | positive (6V) |
| negative (12V) | |
| Charging system | generator |
| Charging amps | 20 |
| Batteries | 1 (gas) |
| 2 (diesel) | |
| Battery volts | 6 |
| Battery AH | 80 |
| References | |
 | |
| Series 713 Backhoes published in 1959, by Ford | |
| Industrial Tractor-Loader published in 1958, by Ford | |
| Operator's Manual Industrial Tractor (SE-6895-A) published in 1958 | |
| Industrial Line published in 1958, by Ford | |
| 1955-1960 Tractor Shop Manual (SE-8175) published in 1961 |
