Ford 1841 Engine


Ford 1841 industrial tractor photo
1957 - 1960
1801 Series
Industrial tractor
Engines overview
Ford 2.8L 4-cyl gasoline
Ford 2.8L 4-cyl diesel
Engine Detail
Ford
gasoline
4-cylinder 8-valve
liquid-cooled
Displacement172 ci
2.8 L
Bore/Stroke3.90x3.60 inches
99 x 91 mm
Compression7.5:1
Rated RPM2325
Firing order1-2-4-3
Starter volts6
Coolant capacity15 qts
14.2 L
Sparkplug14MM
Sparkplug gap0.027 inches
0.686 mm
Point gap0.025 inches
0.635 mm
Intake valve clearance0.015 inches (hot)
0.381 mm
Exhaust valve clearance0.015 inches (hot)
0.381 mm
Engine Oil

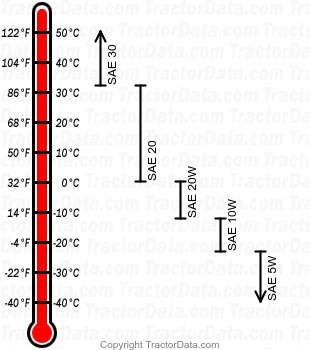

1841 gasoline engine oil chart
Oil capacity5 qts
4.7 L
Engine Detail
Ford
diesel
4-cylinder 8-valve
liquid-cooled
Displacement172 ci
2.8 L
Bore/Stroke3.90x3.60 inches
99 x 91 mm
Power56.3 hp
42.0 kW
Air cleaneroil bath
Compression16.8:1
Rated RPM2200
Torque140.4 lb-ft
190.4 Nm
Torque RPM1400
Firing order1-2-4-3
Starterelectric
Starter volts12
Engine Oil

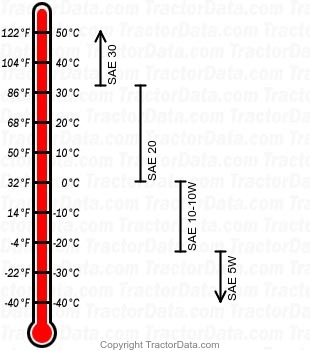

1841 diesel engine oil chart
Oil capacity5 qts
4.7 L
