International Harvester 2656

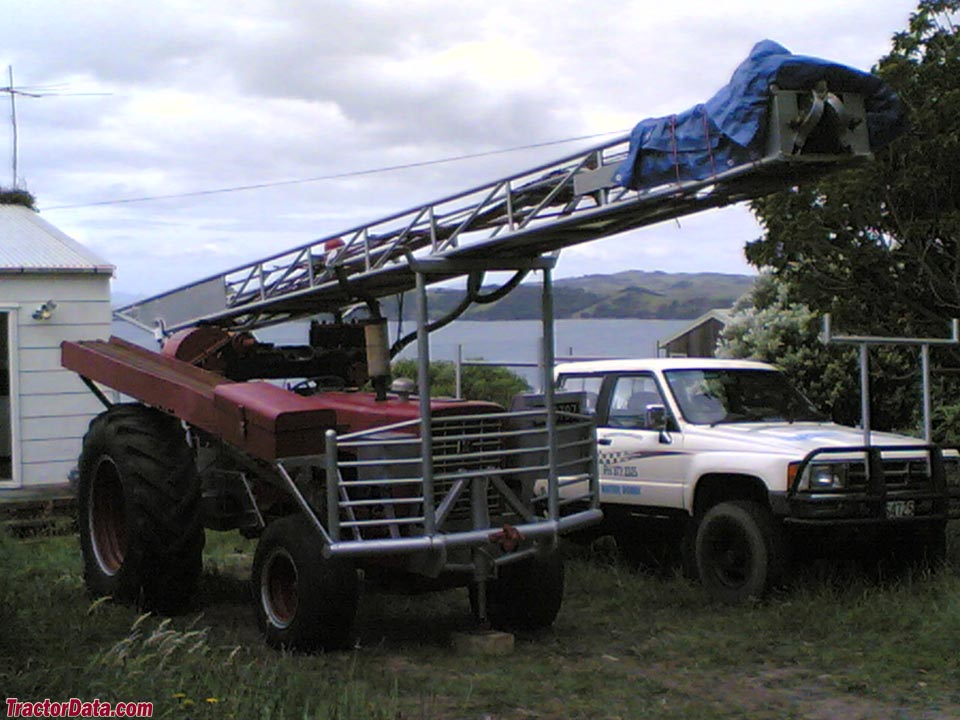

International Harvester 2656 industrial tractor photo
1965 - 1973
Industrial tractor
Production
ManufacturerInternational Harvester
TypeIndustrial tractor
FactoryRock Island, Illinois, USA
Variants
IH 656utility tractor
2656industrial tractor
Farmall 656row-crop tractor
International Harvester 2656 Engines
International Harvester 4.3L 6-cyl gasoline
International Harvester 4.6L 6-cyl diesel
Engine details ...
International Harvester 2656 Transmissions
10-speed two-speed power shift
5-speed mechanical shuttle
5-speed gear
Transmission details ...
International Harvester 2656 Power
Engine (gross)75 hp
55.9 kW
Gas PTO (claimed)63.8 hp
47.6 kW
Diesel PTO (claimed)61.5 hp
45.9 kW
Mechanical
Chassis4x2 2WD
Final drivesbull gear
Steeringpower
Brakesmechanical disc
CabOpen operator station.
Capacity
Fuel22.7 gal
85.9 L
Hydraulic system17 gal
64.3 L
Hydraulics
Typeopen center
Capacity17 gal
64.3 L
Pump flow12 gpm
45.4 lpm
Tractor hitch
Rear TypeII/I OptOptional
Controlposition and draft control
Power Take-off (PTO)
Rear PTOindependent OptOptional
Clutchwet disc
Rear RPM540
 1000
Dimensions & Tires
Wheelbase80 inches
203 cm
Weight5800 to 6100 pounds
Front tire7.50-16
Rear tire16.9-30
Full dimensions and tires ...
Electrical
Charging systemalternator
Charging amps55
Diesel Batteries2
Gasoline Batteries1
Diesel Battery volts6
Gasoline Battery volts12
Diesel Battery AH130
Gasoline Battery AH50
References
2656 reference literature
Buyer's Guide 1967 published by International Harvester
International 2656 Industrial Tractor published by International Harvester
