| | 1965 - 1973 |
| Industrial tractor |
|
| Transmissions overview |
| 10-speed two-speed power shift |
| 5-speed mechanical shuttle |
| 5-speed gear |
| Transmission |

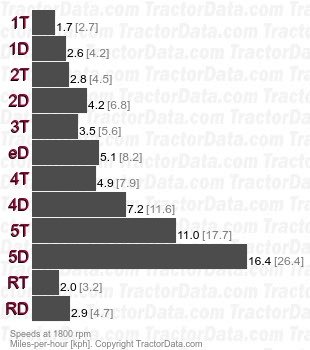

| Transmission | Torque Amplifier
|
| Type | two-speed power shift
|
| Gears | 10 forward and 2 reverse
|
| Clutch | 279.4mm dry disc
|
| Oil capacity | 68 qts
64.4 L
|
| Speeds |
| With 16.9-30 rear tires. |
|

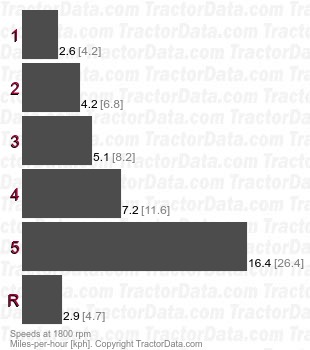

| Transmission |
| Type | mechanical shuttle
|
| Gears | 5 forward and reverse
|
| Clutch | 279.4mm dry disc
|
| Oil capacity | 68 qts
64.4 L
|
| Speeds |
| With 16.9-30 rear tires. |
|

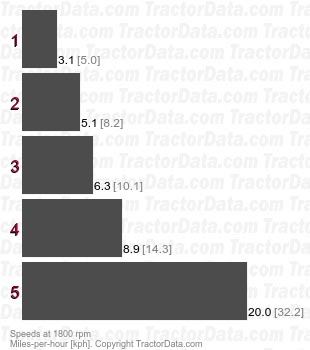

| Transmission |
| Type | gear
|
| Gears | 5 forward and 1 reverse
|
| Clutch | 279.4mm dry disc
|
| Oil capacity | 68 qts
64.4 L
|
| Speeds |
| With 16.9-30 rear tires. Optional high-speed first and reverse are about 1 MPH faster. |
|
