| | 1997 - 2003 |
| CS Series | | Row-Crop tractor |
|
Series map:
CS 110
CS 120
77.3kw
84.6kw
| Transmission options |
| 24-speed four-speed power shift |
| 40-speed creeper |
| Transmission |
| Type | four-speed power shift
|
| Gears | 24 forward and reverse
|
| Four power shift gears in six synchronized ranges with power shuttle. |

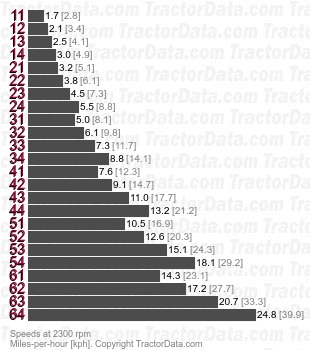

| Speeds |
| With 18.4R38 rear tires. |
|

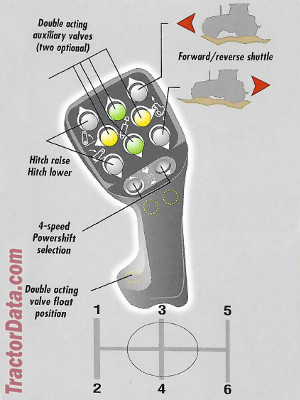

| Shift Pattern |
 |
| Transmission |
| Type | creeper
|
| Gears | 40 forward and reverse
|
| Optional creeper adds an additional four ranges to the standard transmission. |
