CaseIH CS 120 Transmission


CaseIH CS 120 tractor photo
1997 - 2003
CS Series
Row-Crop tractor
Series map:
CS 110
CS 120
CS 130
77.3kw
84.6kw
91.9kw
Transmission options
24-speed four-speed power shift
40-speed creeper
Transmission
Typefour-speed power shift
Gears24 forward and reverse
Four power shift gears in six synchronized ranges with power shuttle.

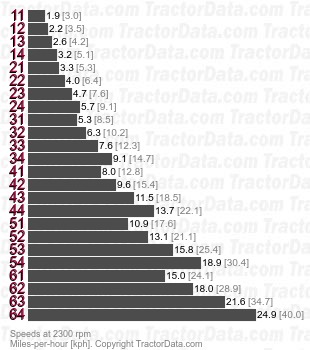

Speeds
With 20.8R38 rear tires.
CS 120  four-speed power shift speeds

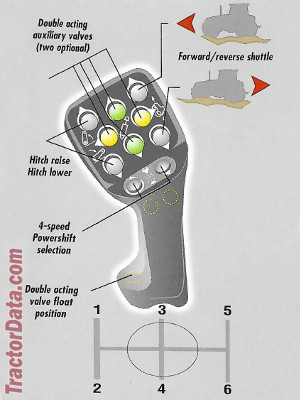

Shift Pattern
CaseIH CS 120 transmission controls
Transmission
Typecreeper
Gears40 forward and reverse
Optional creeper adds an additional four ranges to the standard transmission.
