Tractors > Fiat > G240

Fiat G240 - transmission

No photo available
1993 - 2002   G Series
Row-Crop tractor
Series back:Fiat G210
more Fiat G240 specifications...





Note: the Fiat model G240 is the same as the Ford 8970. The following data is from the 8970 listing.


Transmission:

Type:full power shift
Gears:16 forward and 8 reverse
Speeds:With 18.4-42 rear tires.

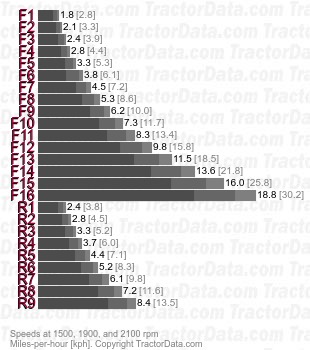

G240  full power shift speeds


Transmission:

Type:creeper
Gears:32 forward and 18 reverse
Creeper range added to standard power shift transmission. With tractor in neutral and inching pedal pressed, toggle button is used to enter/exit creeper range.
