Tractors > Ford > 8970

Ford 8970



Ford 8970 tractor photo
1993 - 2002
70 Genesis Series
Row-Crop tractor
Series map:
8870
8970
210.0hp
240.0hp
Production
ManufacturerFord
Row-Crop tractor
Built in Winnipeg, Manitoba, Canada
Original price was $127,000 in 2000
Variants
2210similar Buhler Versatile model
Ford 8970 Engine
Ford 7.5L 6-cyl diesel
Engine details ...
Ford 8970 Transmissions
16-speed full power shift
32-speed creeper
Transmission details ...
Ford 8970 Power
Engine240 hp
179.0 kW
PTO (claimed)210 hp
156.6 kW
Drawbar (tested)189.5 hp
141.3 kW
PTO (tested)224.6 hp
167.5 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Power steering
Wet disc brakes
Cab standard with air-conditioning.
Photos
Ford 8970
Ford 8970 photos...
Capacity
Fuel110 gal
416.4 L
Hydraulic system36.9 gal
139.7 L
Front hubs1.7 qts (each)
1.6 L
Front diff.13 qts
12.3 L
Hydraulics
Typeclosed center load sensing
Capacity36.9 gal
139.7 L
Pressure2750 psi
189.6 bar
Valves3
Pump flow24 gpm
90.8 lpm
Total flow31 gpm
117.3 lpm
 55 gpm (MegaFlow optional)
208.2 lpm
Tractor hitch
Rear TypeIII
Rear lift15000 lbs
6804 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic wet disc
Rear PTO Type1000 (1.375)
Engine RPM1000@1903
Dimensions & Tires
Wheelbase118.3 inches
300 cm
 122.6 inches (SuperSteer)
311 cm
Weight16950 to 19350 pounds
Front tire14L-16.1
Rear tire18.4R42
Full dimensions and tires ...
Ford 8970 attachments
front-end loader
Attachment details ...
Electrical
Groundnegative
Charging systemalternator
Charging amps130
Batteries2
Battery CCA950
Battery volts12
References

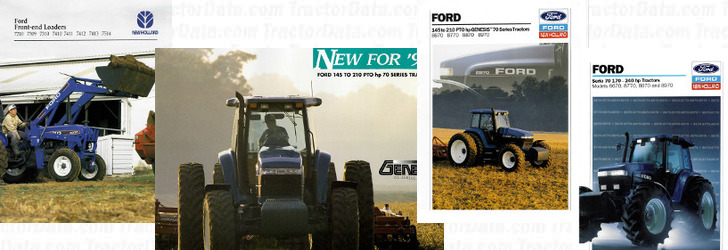

8970 references literature
Front-end Loaders published in 1995, by New Holland
New for '94 - Genesis 70 Series Tractors published in 1993, by Ford
145 to 210 PTO hp GENESIS 70 Series Tractors published in 1993, by Ford
Serie 70 170 - 240 hp Tractors published in 1994, by Ford
