Tractors > Fiat > G240

Fiat G240 - engine

No photo available
1993 - 2002   G Series
Row-Crop tractor
Series back:Fiat G210
more Fiat G240 specifications...





Note: the Fiat model G240 is the same as the Ford 8970. The following data is from the 8970 listing.


Engine Detail:

 Ford
 turbocharged diesel
 6-cylinder
 liquid-cooled
 456 ci [7.5 L]
Bore/Stroke:4.4x5.0 inches [112 x 127 mm]
Power:240 hp [179.0 kW]
Compression:17.5:1
Rated RPM:2100
Firing order:1-5-3-6-2-4
Starter volts:12
Starter power:6 hp [4.5 kW]
Oil capacity:22 qts [20.8 L]
Coolant capacity:26.4 qts [25.0 L]
Intake valve clearance:0.014 inches [0.356 mm] (cold)
Exhaust valve clearance:0.017 inches [0.432 mm] (cold)

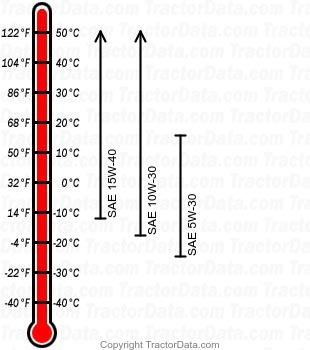

G240 diesel engine oil chart
