Tractors > New Holland > Workmaster 60

New Holland Workmaster 60

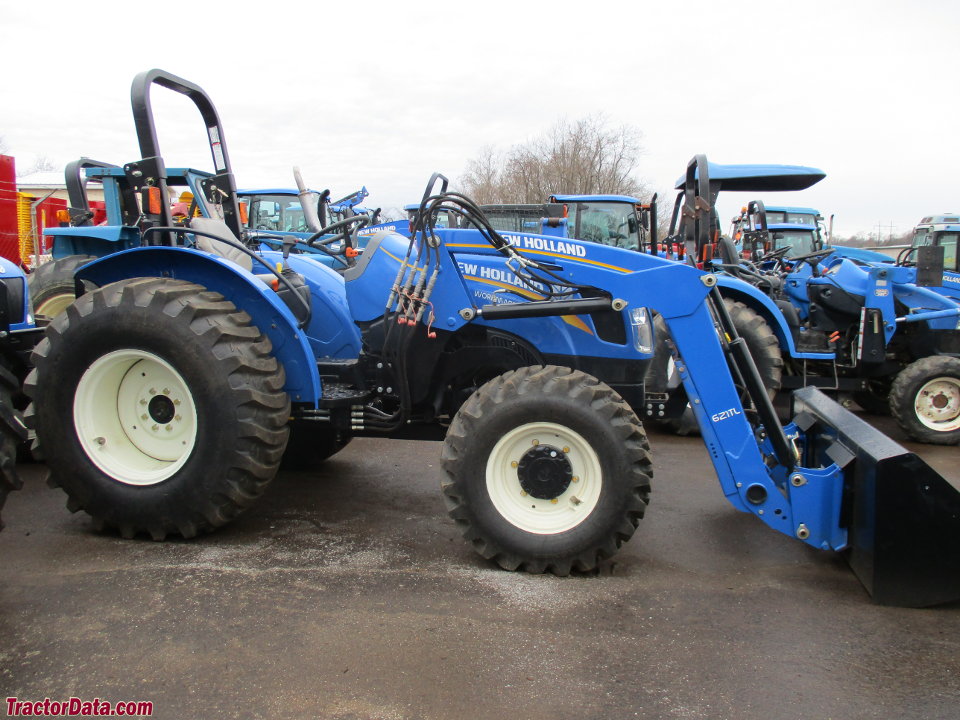

New Holland Workmaster 60 tractor photo
2015 -    Workmaster Series
Utility tractor
Previous model:New Holland Workmaster 55
Series next:New Holland Workmaster 70
Series back:New Holland Workmaster 50






Production:

Manufacturer:New Holland (a part of CNH)
Original price (USD)
   $24,966 (2017 )


New Holland Workmaster 60 Engine:

   FPT 2.2L 3-cyl diesel
full engine details ...


Capacity:

Fuel:13.8 gal [52.2 L]


3-Point Hitch:

Rear Type:II/I
Control:position and draft control
Rear lift (at ends):3307 lbs [1500 kg]
Rear lift (at 24"/610mm):2701 lbs [1225 kg]
Rear Arms:telescoping draft links


Power Take-off (PTO):

Rear PTO:independent
Clutch:mechanical
Rear RPM:540
 540/540E*Optional


Dimensions & Tires:

2WD Wheelbase:96.4 inches [244 cm]
4WD Wheelbase:97.6 inches [247 cm]
Weight:4442 to 5059 pounds
Front tire:7.5x16
2WD Rear tire:14.9x28
full dimensions and tires ...


New Holland Workmaster 60 attachments:

 front-end loader
 backhoe
all Workmaster 60 attachments ...


Workmaster 60 Serial Numbers:


- Serial numbers unknown -



New Holland Workmaster 60 Power:

Engine:60 hp [44.7 kW]
PTO (claimed):51 hp [38.0 kW]


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Two-post folding ROPS.


Hydraulics:

Type:open center
Valves:1 or 2
Pump flow:12 gpm [45.4 lpm]
Total flow:17.5 gpm [66.2 lpm]
Steering flow:5.5 gpm [20.8 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:75


Battery:

Number:1
Volts:12


Page information:

Last update:April 13, 2017
