Tractors > New Holland > Workmaster 70

New Holland Workmaster 70

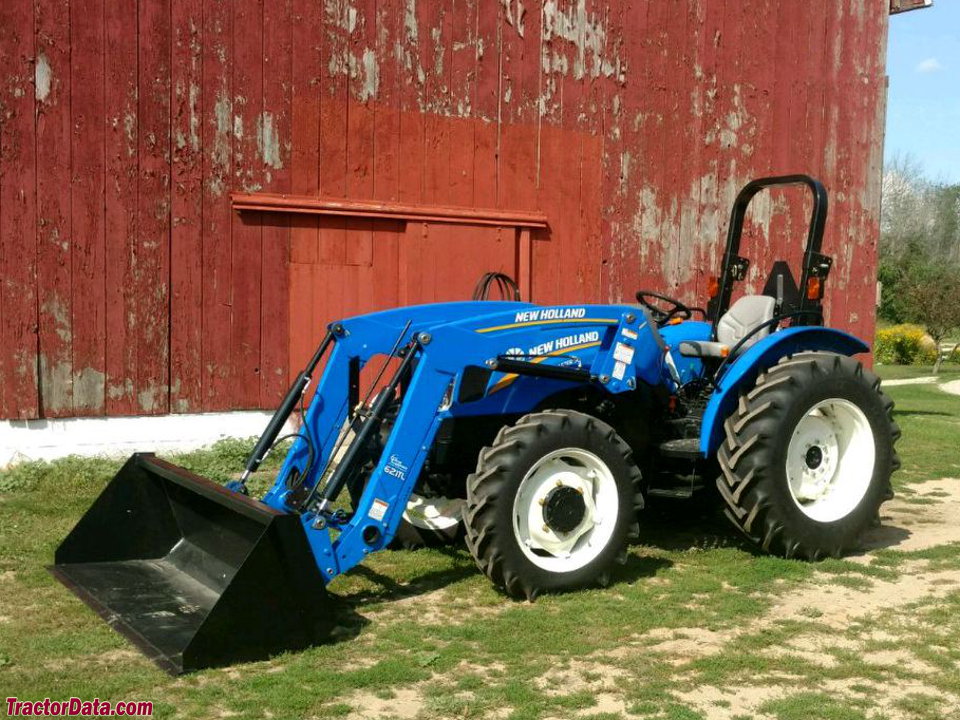

New Holland Workmaster 70 tractor photo
2015 -    Workmaster Series
Utility tractor
Previous model:New Holland Workmaster 65
Series back:New Holland Workmaster 60



Manufacturer:New Holland (a part of CNH)
Original price (USD)
   $27,216 (2017 )

New Holland Workmaster 70 Engine:

   FPT 2.2L 3-cyl diesel
full engine details ...


Fuel:13.8 gal [52.2 L]

3-Point Hitch:

Rear Type:II/I
Control:position and draft control
Rear lift (at ends):3307 lbs [1500 kg]
Rear lift (at 24"/610mm):2701 lbs [1225 kg]
Rear Arms:telescoping draft links

Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540

Dimensions & Tires:

2WD Wheelbase:96.4 inches [244 cm]
4WD Wheelbase:97.6 inches [247 cm]
Weight:4442 to 5059 pounds
Front tire:7.5x16
2WD Rear tire:14.9x28
full dimensions and tires ...

New Holland Workmaster 70 attachments:

 front-end loader
all Workmaster 70 attachments ...

Workmaster 70 Serial Numbers:

how to read serial numbers...


New Holland Workmaster 70 Power:

Engine:70 hp [52.2 kW]
PTO (claimed):61 hp [45.5 kW]


Chassis:4x2 2WD
 4x4 MFWD 4WD
Brakes:wet disc
Cab:Two-post folding ROPS.


Type:open center
Valves:1 or 2
Pump flow:12 gpm [45.4 lpm]
Total flow:17.5 gpm [66.2 lpm]
Steering flow:5.5 gpm [20.8 lpm]


Charging system:alternator
Charging amps:75
