Ford 4000


Ford 4000 tractor photo
1962 - 1975
Model year
Utility tractor
Series:4000
4600
Production
Manufacturer:Ford
Type:Utility tractor
Factory:Highland Park, Michigan, USA
Original price:$3,500 (1975 )
The three-cylinder Ford 4000 series tractors, which debuted in 1965, were entirely different from the old 801-based 4000 tractor.
Variants
4100:general purpose
4200:row-crop
4000SU:special utility
Ford 4000 Power
PTO (claimed):55 hp
41.0 kW
Plows:4
Drawbar (tested):47.57 hp
35.5 kW
PTO (tested):52.65 hp
39.3 kW
power test details ...
Ford 4000 Engines
Ford 3.3L 3-cyl diesel
Ford 3.3L 3-cyl gasoline
Engine details ...
Mechanical
Chassis:4x2 2WD
Final drives:inboard planetary
Differential lock:mechanical rear*Optional
Steering:manual
 hydraulic power*Optional
Brakes:mechanical wet disc
Cab:Open operator station.
Transmissions:8-speed
 10-speed
Transmission details ...
Capacity
Fuel:16 gal
60.6 L
Hydraulic system:8.4 gal
31.8 L (transmission PTO)
 8.1 gal
30.7 L (independent PTO)
Hydraulics
Type:open center
Capacity:8.4 gal
31.8 L (transmission PTO)
 8.1 gal
30.7 L (independent PTO)
Pressure:2500 psi
172.4 bar
Pump flow:5.4 gpm
20.4 lpm
Steering flow:4.5 gpm
17.0 lpm
Steering press.:800 psi
55.2 bar
Tractor hitch
Rear Type:2/1
Rear lift:3200 lbs
1451 kg
Power Take-off (PTO)
Rear PTO:transmission
 independent*Optional
Rear RPM:540
 1000
Engine RPM:540@1800
1000@1950
Dimensions & Tires
Wheelbase:84.5 inches
214 cm
Weight:4,885 lbs
2215 kg
Front tire:6.00-16
Rear tire:12.4-38
Full dimensions and tires ...
4000 Serial Numbers

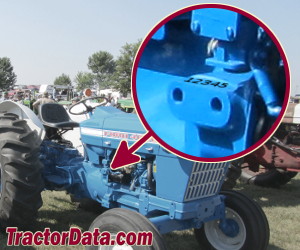

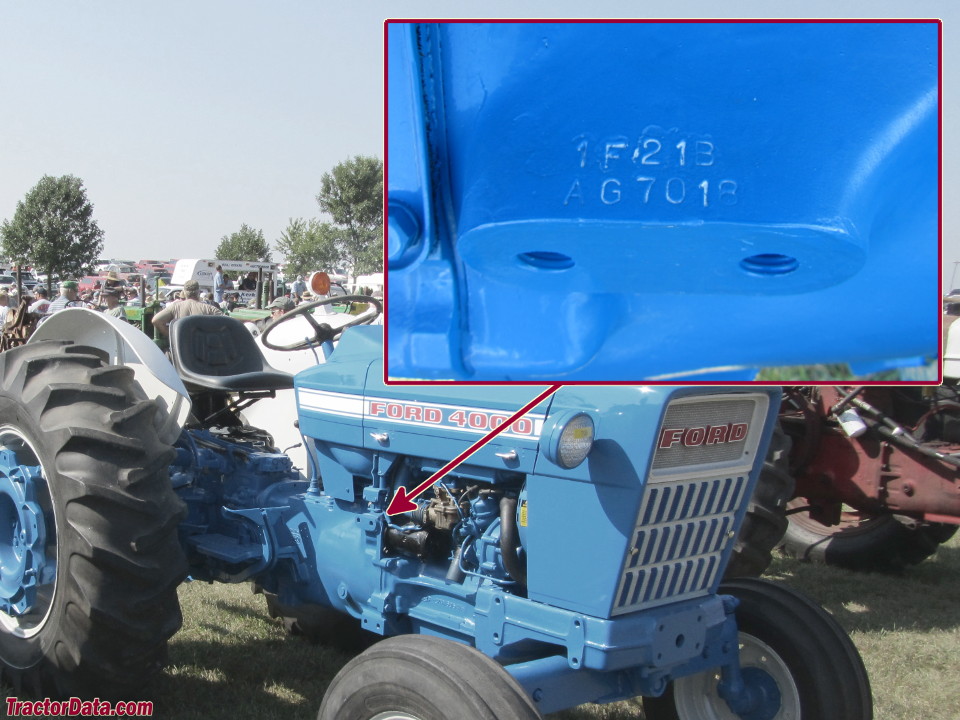

Location:Right side, behind starter on clutch housing.
photo of 4000 serial number

1965:C100000
1966:C124200
1967:C161300
1968:C190200
1969:C226000
1970:C257600
1971:C292100
1972:C327200
1973:C367300
1974:C405200
1975:C450700

how to read serial numbers...

Electrical
Ground:negative
Charging system:generator
Charging amps:22
Battery volts:12
Battery AH:80 (gas)
 128 (diesel)
