Ford 4000 Engine


Ford 4000 tractor photo
1962 - 1975
Model year
Utility tractor
Series map:
4000
57.0hp
Engines overview
Ford 3.3L 3-cyl diesel
Ford 3.3L 3-cyl gasoline
Engine Detail
Ford
diesel
3-cylinder
liquid-cooled
Displacement201 ci
3.3 L
Bore/Stroke4.40x4.40 inches
112 x 112 mm
Power57 hp
42.5 kW
Air cleanerdry
Compression16.5:1
Rated RPM2200
Torque153 lb-ft
207.5 Nm
Torque RPM1300
Firing order1-2-3
Starter volts12
Coolant capacity14 qts
13.2 L
Intake valve clearance0.015 inches*Hot
0.381 mm
Exhaust valve clearance0.018 inches*Hot
0.457 mm
Engine Oil

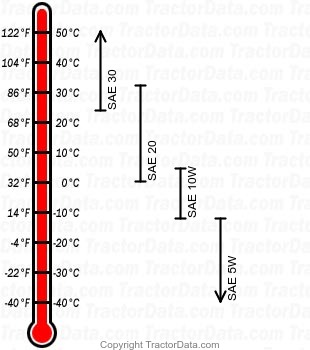

4000 diesel engine oil chart
Oil capacity8 qts
7.6 L
Engine Detail
Ford
gasoline
3-cylinder
liquid-cooled
Displacement201 ci
3.3 L
Bore/Stroke4.40x4.40 inches
112 x 112 mm
Power56.5 hp
42.1 kW
Air cleanerdry
Compression7.75:1
Torque161 lb-ft
218.3 Nm
Torque RPM1100
Starter volts12

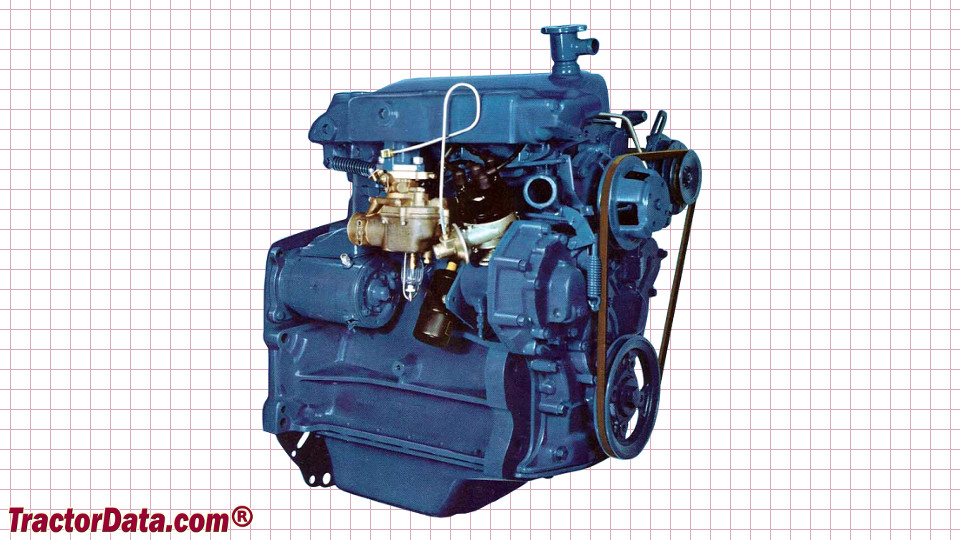

Ford 4000 Engine
Ford 4000 engine image
