Tractors > Ford > 4000

Ford 4000 Transmission



Ford 4000 tractor photo
1962 - 1975
Model year
Utility tractor
Series map:
4000
57.0hp
Transmission options
8-speed
10-speed
Transmission
TransmissionDual Range
Gears8 forward and 2 reverse
Clutchdry disc
Oil capacity13.2 qts
12.5 L
 17 qts (independent PTO)
16.1 L
Four-speed gear selector on left, high-low range select lever on right. Tractor must be stopped before shifting.
Speeds

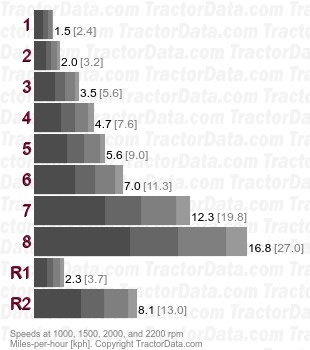

4000 Dual Range speeds
Shift Pattern
Ford 4000 transmission controls
Transmission
TransmissionSelect-O-Speed
Gears10 forward and 2 reverse
Clutchhydraulic wet disc
Oil capacity12.3 qts
11.6 L
Transmission can shifted between gears while moving.
Speeds

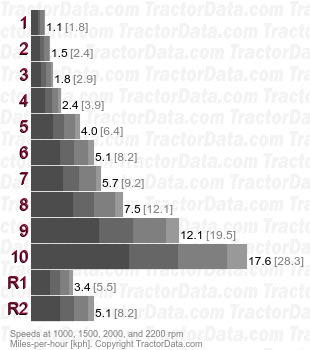

4000 Select-O-Speed speeds
