Tractors > New Holland > T4.100

New Holland T4.100

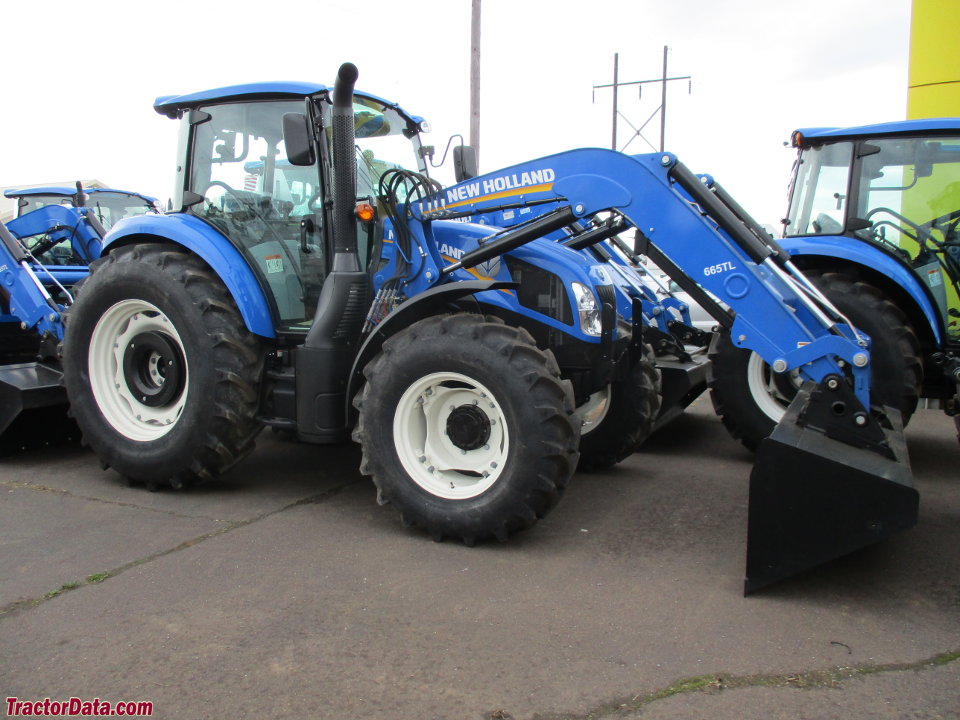

New Holland T4.100 tractor photo
2015 -    T4 Series
Utility tractor
Previous model:New Holland T4.95
Series next:New Holland T4.110
Series back:New Holland T4.90






Production:

Manufacturer:New Holland


New Holland T4.100 Engine:

   FPT 3.4L 4-cyl diesel
full engine details ...


Capacity:

Fuel:30.3 gal [114.7 L]
Exhaust fluid (DEF):2.8 gal [10.6 L]


Drawbar:

Drawbar:Cat. 2


3-Point Hitch:

Rear Type:II
Control:top-link draft sensing
Rear lift (at ends):7351 lbs [3334 kg]
Rear lift (at 24"/610mm):4339 lbs [1968 kg]
Rear Arms:telescopic link ends


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540
 540E*Optional
 1000*Optional


Dimensions & Tires:

2WD Wheelbase:92.2 inches [234 cm]
4WD Wheelbase:90 inches [228 cm]
Weight:6989 to 8157 pounds
Front tire:7.50-16
2WD Rear tire:16.9R30
full dimensions and tires ...


New Holland T4.100 attachments:

 front-end loader
all T4.100 attachments ...


T4.100 Serial Numbers:


- Serial numbers unknown -



New Holland T4.100 Power:

Engine (gross):99 hp [73.8 kW]
PTO (claimed):85 hp [63.4 kW]


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD
Final drives:inboard planetary
Steering:power
Brakes:wet disc
Cab:VisionView Cab standard. Two-post ROPS available.


Hydraulics:

Type:open center
Valves:2 or 3
Pump flow:16.9 gpm [64.0 lpm]


Electrical:

Ground:negative
Charging system:alternator


Battery:

Volts:12
