New Holland PowerStar 100

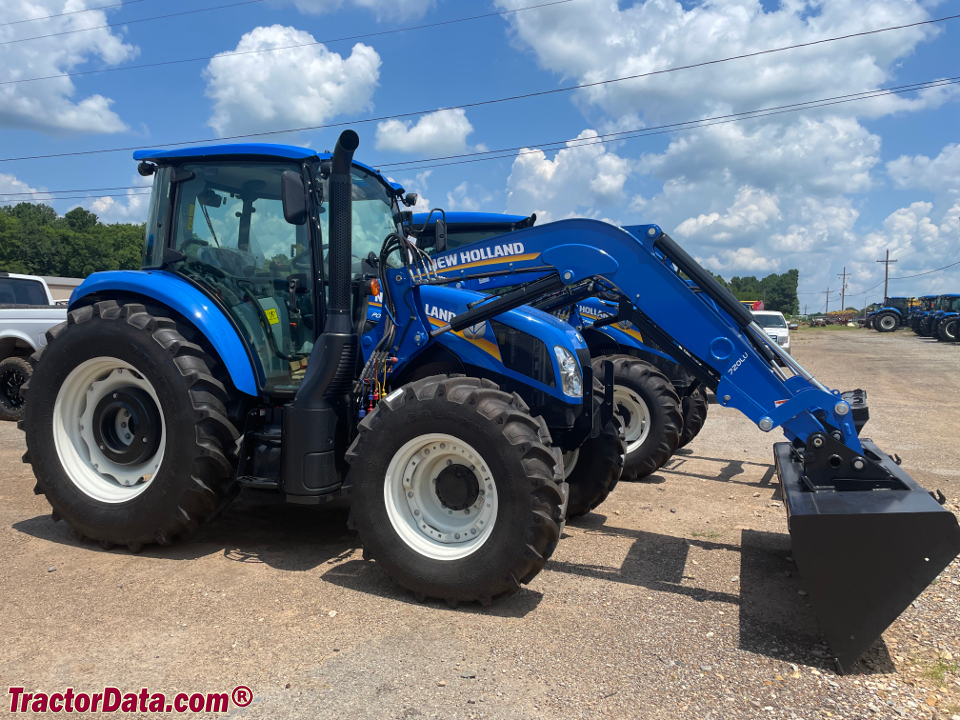

New Holland PowerStar 100 tractor photo
2018 -
PowerStar Series
Utility tractor
T4.100
Series:PowerStar 90PowerStar 100PowerStar 110
Production
Manufacturer:New Holland
Type:Utility tractor
Original price:$64,196 (2020 ROPS )
Original price:$75,318 ( Cab )
New Holland PowerStar 100 Power
Engine (gross):99 hp
73.8 kW
PTO (claimed):85 hp
63.4 kW
New Holland PowerStar 100 Engine
FPT 3.4L 4-cyl diesel
Fuel tank:30.3 gal
114.7 L
Exhaust fluid (DEF):2.8 gal
10.6 L
Engine details ...
Mechanical
Chassis:4x2 2WD: 4x4 MFWD 4WD
Final drives:inboard planetary
Differential lock:mechanical rear
Steering:power
Brakes:hydraulic wet disc
Cab:Two-post folding ROPS. Cab optional.
Transmissions:12-speed Four synchronized gears in three ranges with power shuttle.
 12-speed mechanical shuttle
 20-speed creeper
Transmission details ...
Photos
No photos of the New Holland PowerStar 100 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Type:open center
Valves:2 or 3
Pump flow:16.9 gpm
64.0 lpm
Total flow:26.6 gpm
100.7 lpm
Steering flow:9.7 gpm
36.7 lpm
Tractor hitch
Rear Type:II
Rear lift (at 24"/610mm):5620 lbs
2549 kg
 9700 lbs
4399 kg *Optional
Power Take-off (PTO)
Rear PTO:independent
Clutch:electro-hydraulic wet disc
Rear RPM:540
 540/1000*Optional
Dimensions & Tires
2WD Wheelbase:92.2 inches
234 cm
4WD Wheelbase:89.9 inches
228 cm
Weight:6988 to 8157 pounds
Front tire:10.00-16
2WD Rear tire:18.4-30
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
ROPS Charging amps:120
Cab Charging amps:150
Battery volts:12
