Tractors > New Holland > Boomer 37

New Holland Boomer 37

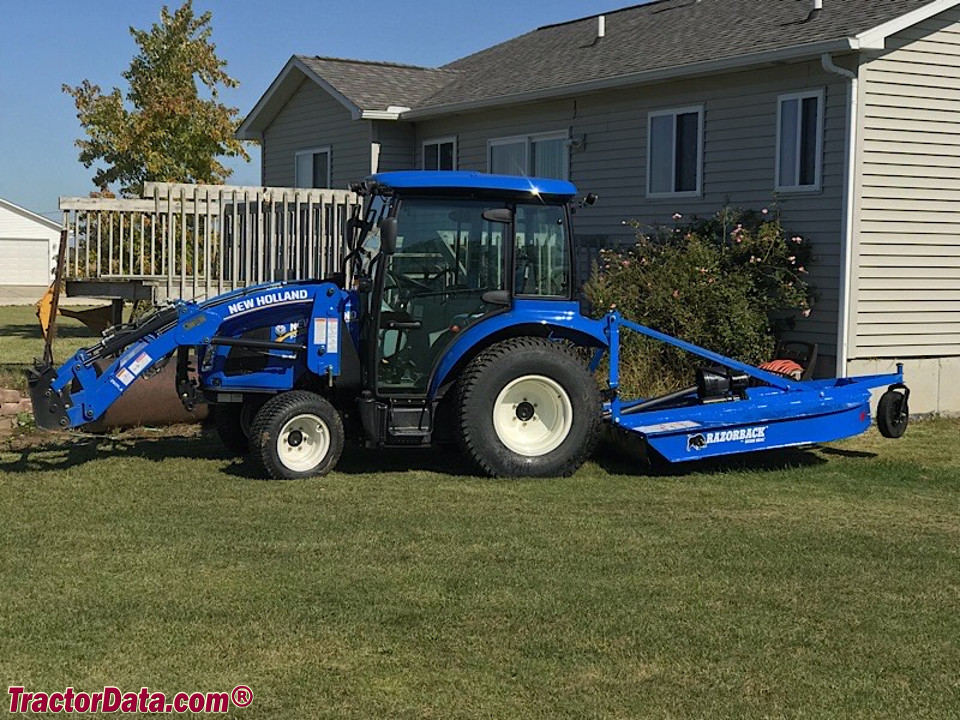

New Holland Boomer 37 tractor photo
2014 -    Boomer Series
Compact Utility tractor
Previous model:New Holland Boomer 35
Series next:New Holland Boomer 41
Series back:New Holland Boomer 33






Production:

Manufacturer:New Holland


New Holland Boomer 37 Engine:

   Shibaura 1.5L 3-cyl diesel
full engine details ...


Capacity:

Fuel:10.5 gal [39.7 L]


3-Point Hitch:

Rear Type:I
Control:position control
Rear lift (at ends):1808 lbs [820 kg]
Rear lift (at 24"/610mm):1345 lbs [610 kg]
Rear Arms:adjustable draft link ends


Power Take-off (PTO):

Rear PTO:independent
Clutch:electro-hydraulic
Rear RPM:540 (1.375)
Mid PTO:independent
Mid RPM:2000


Dimensions & Tires:

Wheelbase:66 inches [167 cm]
Weight:2804 to 2870 pounds
Front tire:7x14
Rear tire:11.2x24
full dimensions and tires ...


New Holland Boomer 37 attachments:

 front-end loader
all Boomer 37 attachments ...


Boomer 37 Serial Numbers:


- Serial numbers unknown -



New Holland Boomer 37 Power:

Engine (gross):36.2 hp [27.0 kW]
Gear PTO (claimed):31.1 hp [23.2 kW]
Hydro PTO (claimed):29.2 hp [21.8 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Differential lock:mechanical rear
Steering:hydrostatic power
Brakes:wet discs
Cab:Two-post foldable ROPS. Cab optional with air-conditioning.


Hydraulics:

Type:open center
Valves:1 or 2
Pump flow:8.2 gpm [31.0 lpm]
Gear Steering flow:4.2 gpm [15.9 lpm]
Hydro Steering flow:5.3 gpm [20.1 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:85


Battery:

Number:1
Volts:12
