Tractors > Chamberlain > 306

Chamberlain 306

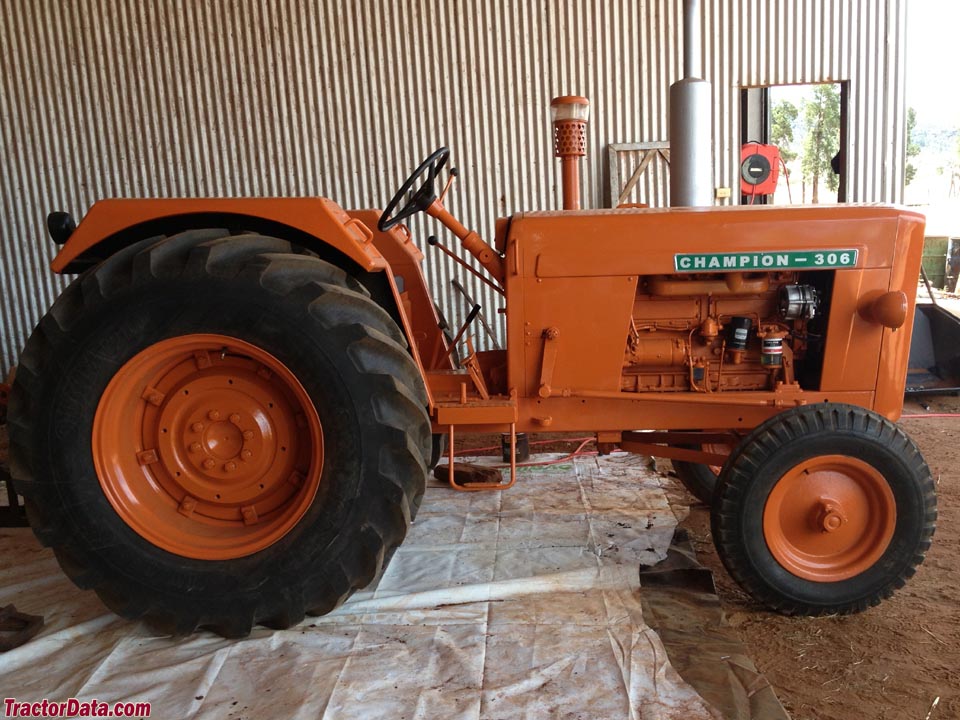

Chamberlain 306 tractor photo
1966 - 1969   Champion Series
Standard-tread tractor
Previous model:Chamberlain Champion 9G
Next model:Chamberlain C670






Production:

Manufacturer:Chamberlain
Factory:Welshpool, Australia


Chamberlain 306 Engine:

   Perkins 5.0L 6-cyl diesel
full engine details ...


Capacity:

Fuel:28.8 gal [109.0 L]


3-Point Hitch:

Rear Type:II (optional)


Power Take-off (PTO):

Rear PTO:live
Rear RPM:540 (1.375)
Engine RPM:540@1600


Dimensions & Tires:

Weight:7800 lbs [3538 kg]
Front tire:7.50x18
Rear tire:18.4x30
full dimensions and tires ...


306 Serial Numbers:


how to read serial numbers...



Chamberlain 306 Power:

Engine:70 hp [52.2 kW]
PTO (claimed):58 hp [43.3 kW]


Mechanical:

Chassis:4x2 2WD
Steering:manual
Cab:Open operator station. Cab optional.


Belt Pulley:

Diameter:10.25 inches [26 cm]
Width:6.25 inches [15 cm]
RPM:1600
Speed:3100 ft/min [944.88 meters/min]


Battery:
