Tractors > Chamberlain > 306

Chamberlain 306 Transmission



Chamberlain 306 tractor photo
1966 - 1969
Champion Series
Standard-tread tractor
Series map:
306
52.2kw
Transmission
Typegear
Gears9 forward and 3 reverse
Clutch355.6mm dry disc
Three gears (1-3), plus reverse (R) in three ranges (low, intermediate, high).

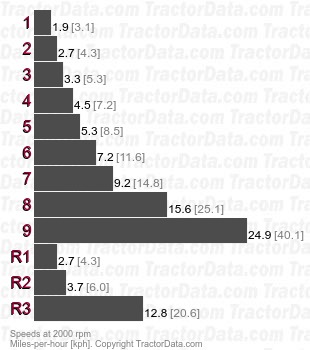

Speeds
With 18.4x30 rear tires.
306 gear speeds
