Chamberlain C670
|
|
| Production | |
| Manufacturer | Chamberlain |
| Standard-tread tractor | |
| Built in Welshpool, Australia | |
| Variants | |
| C670D | drawbar only |
| C670L | three-point hitch |
| Chamberlain C670 Engine | |
| Perkins 5.0L 6-cyl diesel | |
 Engine details ... |
| Chamberlain C670 Transmission | |
| 9-speed gear | |
 Transmission details ... |
| Chamberlain C670 Power | |
| Engine | 70 hp 52.2 kW |
| Drawbar (claimed) | 57 hp 42.5 kW |
| PTO (claimed) | 68 hp 50.7 kW |
| Mechanical | |
| Two-wheel drive | |
| Steering | manual |
| Steering | power OptOptional |
| Disc brakes | |
| Open operator station. Cab optional. | |
| Photos | |
 | |

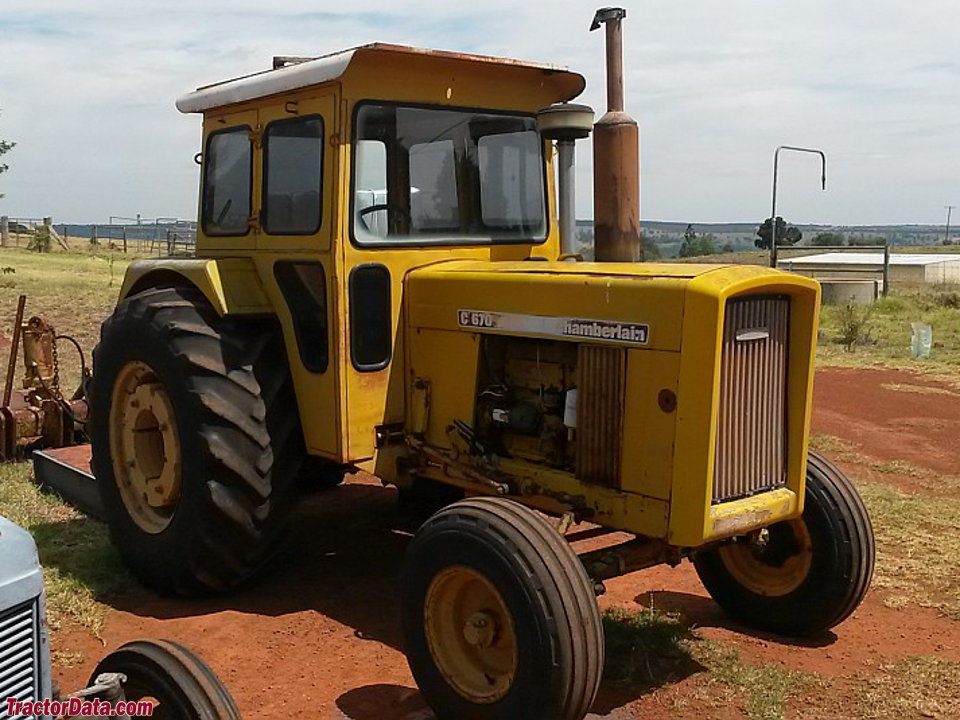

 Chamberlain C670 photos... | |
| Capacity | |
| Fuel | 36 gal 136.3 L |
| Hydraulic system | 3 gal 11.4 L |
| Hydraulics | |
| Type | open center |
| Capacity | 3 gal 11.4 L |
| Pressure | 1900 psi 131.0 bar |
| Pump flow | 14 gpm 53.0 lpm |
| Tractor hitch | |
| Rear Type | II OptOptional |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 540@1600 |
| Dimensions & Tires | |
| Wheelbase | 89.1 inches 226 cm |
| Weight | 7200 to 7425 pounds |
| Front tire | 9.00-16 |
| Rear tire | 18.4-30 |
 Full dimensions and tires ... | |
| C670 Serial Numbers | |
| 1970 | 3480 (C670D) |
| 1971 | 3558 (C670D) |
| 1972 | 3810 (C670D) |
| 1973 | 4124 (C670D) |
| 1974 | 4552 (C670D) |
| 1975 | 4841 (C670D) |
| 1970 | 7466 (C670L) |
| 1971 | 7660 (C670L) |
| 1972 | 7965 (C670L) |
| 1973 | 8438 (C670L) |
| 1974 | 9120 (C670L) |
| 1975 | 9465 (C670L) |
FAQ: How to read a serial number table. | |
| References | |
 | |
| C670 published by Chamberlain |
