John Deere 3046R
| | 2014 - |
| 3R Series | | Compact Utility tractor |
|
Series map:
3039R
3046R
38.2hp
44.7hp
| Production |
| Manufacturer | John Deere
|
| Compact Utility tractor |
| Built in Augusta, Georgia, USA |
| Original price was $31,622 in 2020 |
| John Deere 3046R Power |
| Engine | 44.7 hp
33.3 kW
|
| PTO (claimed) | 34.1 hp
25.4 kW
|
| Mechanical |
| Four-wheel drive |
| Final drives | helical gear
|
| Power steering |
| Wet disc brakes |
| Two-post foldable ROPS. Optional cab with air-conditioning. |
| Capacity |
| Fuel | 11.8 gal (Cab)
44.7 L
|
| | 13.5 gal (ROPS)
51.1 L
|
| Hydraulic system | 6.8 gal
25.7 L
|
| Front axle | 5.1 qts
4.8 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 6.8 gal
25.7 L
|
| Pump flow | 8.6 gpm
32.6 lpm
|
| Total flow | 13.9 gpm
52.6 lpm
|
| Steering flow | 5.3 gpm
20.1 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Control | position control
|
| Rear lift (at ends) | 2530 lbs
1147 kg
|
| Rear lift (at 24"/610mm) | 2200 lbs
997 kg
|
| Front Hitch | 0
|
| Front lift (at ends) | 1300 lbs
589 kg
|
| Front lift (at 24"/610mm) | 815 lbs
369 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | electro-hydraulic
|
| Rear PTO Type | 540 (1.375)
|
| Mid PTO | independent OptOptional
|
| Clutch | electro-hydraulic
|
| Mid PTO Type | 2100
|

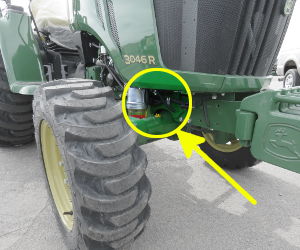

| 3046R Serial Number Location |
 |
| Serial number plate on right side of tractor frame, above the front axle. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Battery volts | 12
|
| References |
 |
| 3 Family published in 2015, by John Deere |
| 3 Family published in 2017, by John Deere |
| 3 Series published in 2019, by John Deere |
| 3 Series published in 2022, by John Deere |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on July 14, 2022 |
