John Deere 3720
| | 2005 - 2013 |
| 3000 Twenty Series | | Compact Utility tractor |
|
Series map:
3520
3720
37.0hp
44.0hp
| Production |
| Manufacturer | John Deere
|
| Compact Utility tractor |
| Built in Augusta, Georgia, USA |
| John Deere 3720 Power |
| Engine | 44 hp
32.8 kW
|
| Mechanical |
| Four-wheel drive |
| Steering | power
|
| Wet disc brakes |
| Two-post foldable ROPS. Cab optional. |
| Capacity |
| ROPS Fuel | 13.5 gal
51.1 L
|
| Cab Fuel | 11.8 gal
44.7 L
|
| Hydraulic system | 6.8 gal
25.7 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 6.8 gal
25.7 L
|
| Valves | 5
|
| Pump flow | 8.6 gpm
32.6 lpm
|
| Total flow | 13.9 gpm
52.6 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Rear lift (at ends) | 2,530 lbs
1147 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear RPM | 540
|
| Mid PTO | optional
|
| Mid RPM | 2100
|
| 3720 Serial Location |
 |

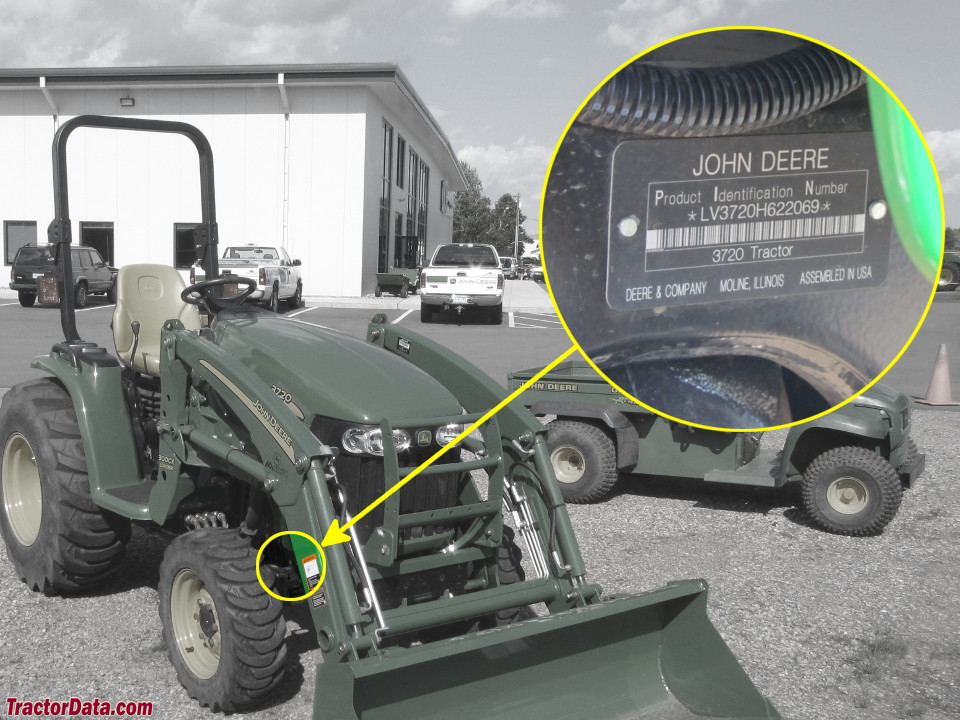

| Serial number plate above front axle of the John Deere 3720 on right side of tractor. |
| Electrical |
| Ground | negative
|
| ROPS Charging amps | 40
|
| Cab Charging amps | 75
|
| Battery CCA | 500
|
| Battery volts | 12
|
| References |
 |
| Commercial & Consumer Equipment Purchasing Guide published in 2007, by John Deere |
| 3000 Series published in 2008, by John Deere |
| 3000 Series published in 2009, by John Deere |
| 3000 Twenty Series Compact Tractors published in 2005, by John Deere |
| 3000 Twenty Series Tractors Product Information Handbook published in 2004, by John Deere |
| TWENTY Series Tractors published in 2010, by John Deere |
