Tractors > John Deere > 3046R

John Deere 3046R Engine



John Deere 3046R tractor photo
2014 -
3R Series
Compact Utility tractor
Series map:
3039R
3046R
38.2hp
44.7hp
Engine Detail
Yanmar 3TNV86
turbocharged diesel
3-cylinder
liquid-cooled
Displacement95.7 ci
1.6 L
Bore/Stroke3.39x3.54 inches
86 x 90 mm
EmissionsTier IV
Emission controldiesel particulate filter (DPF)
Power44.7 hp
33.3 kW
Rated RPM2600
Starterelectric
Starter volts12
Coolant capacity5.6 qts (ROPS)
5.3 L
 7.4 qts (Cab)
7.0 L
Engine Oil

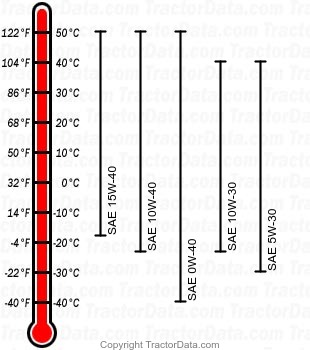

3046R diesel engine oil chart
Oil capacity6 qts
5.7 L
Oil change200 h
