Kubota M7060
|
|
| Production | |
| Manufacturer | Kubota |
| Utility tractor | |
| Variants | |
| M7060HF | 2WD ROPS 8-speed |
| M7060HFC | 2WD Cab 8-speed |
| M7060HD | 4WD ROPS 8-speed |
| M7060HDC | 4WD Cab 8-speed |
| M7060HD12 | 4WD ROPS 12-speed |
| M7060HDC12 | 4WD Cab 12-speed |
| Kubota M7060 Engine | |
| Kubota 3.3L 4-cyl diesel | |
| ROPS Fuel tank | 18.5 gal 70.0 L |
| Cab Fuel tank | 23.8 gal 90.1 L |
 Engine details ... | |
| Kubota M7060 Transmissions | |
| 8-speed power shuttle | |
| 12-speed | |
 Transmission details ... |
| Kubota M7060 Power | |
| Engine (net) | 71 hp 52.9 kW |
| PTO (claimed) | 64 hp 47.7 kW |
| Mechanical | |
| Two- or four-wheel drive | |
| Steering | hydrostatic power |
| Brakes | wet disc |
| hydraulic wet disc (12-speed) | |
| Two-post foldable ROPS. Optional Ultra Grand Cab with air-conditioning. Optional air-ride seat and AM/FM/CD/MP3 sound system. | |
| Photos | |
 | |

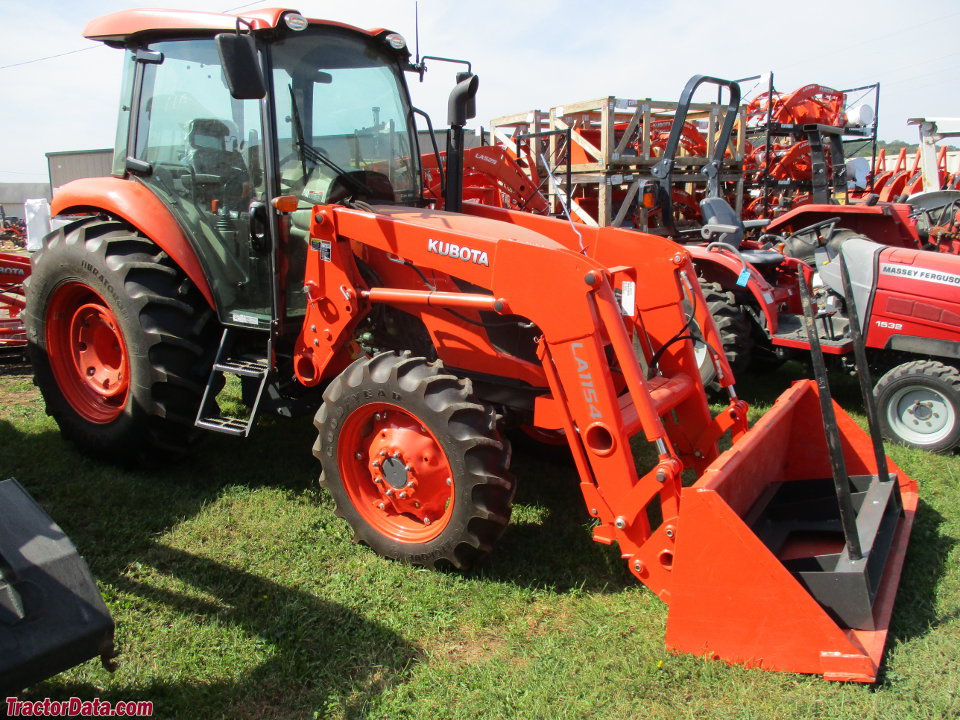

 Kubota M7060 photos... | |
| Hydraulics | |
| Valves | 1 to 3 |
| Pump flow | 11 gpm (8-speed) 41.6 lpm |
| 16.2 gpm (12-speed) 61.3 lpm | |
| Tractor hitch | |
| Rear Type | II/I |
| Control | position control and top-link draft sensing |
| Rear lift (at 24"/610mm) | 3307 lbs 1500 kg |
| Rear Arms | telescopic lower link ends |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | electro-hydraulic |
| Rear PTO Type | 540 (1.375 |
| 540/540E (1.375) | |
| Dimensions & Tires | |
| 2WD Wheelbase | 84.4 inches 214 cm |
| 4WD Wheelbase | 83.1 inches 211 cm |
| Weight | 5027 to 5380 pounds |
| Front tire | 7.5-16 |
| Rear tire | 16.9-30 (2WD) |
 Full dimensions and tires ... | |
| Kubota M7060 attachments | |
| front-end loader | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| ROPS Charging amps | 45 |
| Cab Charging amps | 60 |
| Optional Charging amps | 100 |
| Battery volts | 12 |
| References | |
 | |
| M6060/M7060 published in 2012, by Kubota |
