Kubota M7060 Transmission



Kubota M7060 tractor photo
2013 -
M60 Series
Utility tractor
Series map:
M6060
M7060
M8560
63.5hp
71.0hp
85.5hp
Transmissions overview
8-speed power shuttle
12-speed
Transmission
Typepower shuttle
Gears8 forward and reverse
Clutchwet discs
Four synchronized gears (1-4) in two ranges (low/high).
Speeds
With 16.9-30 rear tires.
M7060 power shuttle speeds
Transmission
Transmissionpower shuttle
Gears12 forward and reverse
Clutchwet discs
Six synchronized gears (1-6) in two ranges (low/high).
Speeds
With 16.9-30 rear tires.

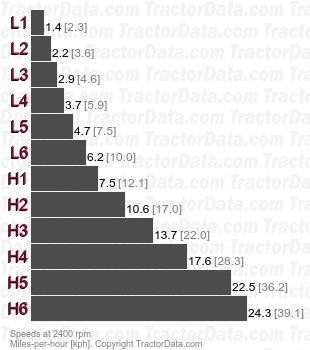

M7060 power shuttle speeds
