Kubota M8560
|
|
| Production | |
| Manufacturer | Kubota |
| Utility tractor | |
| Variants | |
| M8560HF | 2WD ROPS 8-speed |
| M8560HFC | 2WD Cab 8-speed |
| M8560HD | 4WD ROPS 8-speed |
| M8560HDC | 4WD Cab 8-speed |
| M8560HD12 | 4WD ROPS 12-speed |
| M8560HDC12 | 4WD Cab 12-speed |
| Kubota M8560 Engine | |
| Kubota 3.8L 4-cyl diesel | |
| ROPS Fuel tank | 23.8 gal 90.1 L |
| Cab Fuel tank | 29.1 gal 110.1 L |
 Engine details ... | |
| Kubota M8560 Transmissions | |
| 8-speed power shuttle | |
| 12-speed | |
 Transmission details ... |
| Kubota M8560 Power | |
| Engine (net) | 85.5 hp 63.8 kW |
| PTO (claimed) | 76 hp 56.7 kW |
| Mechanical | |
| Two- or four-wheel drive | |
| Steering | hydrostatic power |
| Hydraulic wet disc brakes | |
| Two-post foldable ROPS. Optional Ultra Grand Cab with air-conditioning. Optional air-ride seat and AM/FM/CD/MP3 sound system. | |

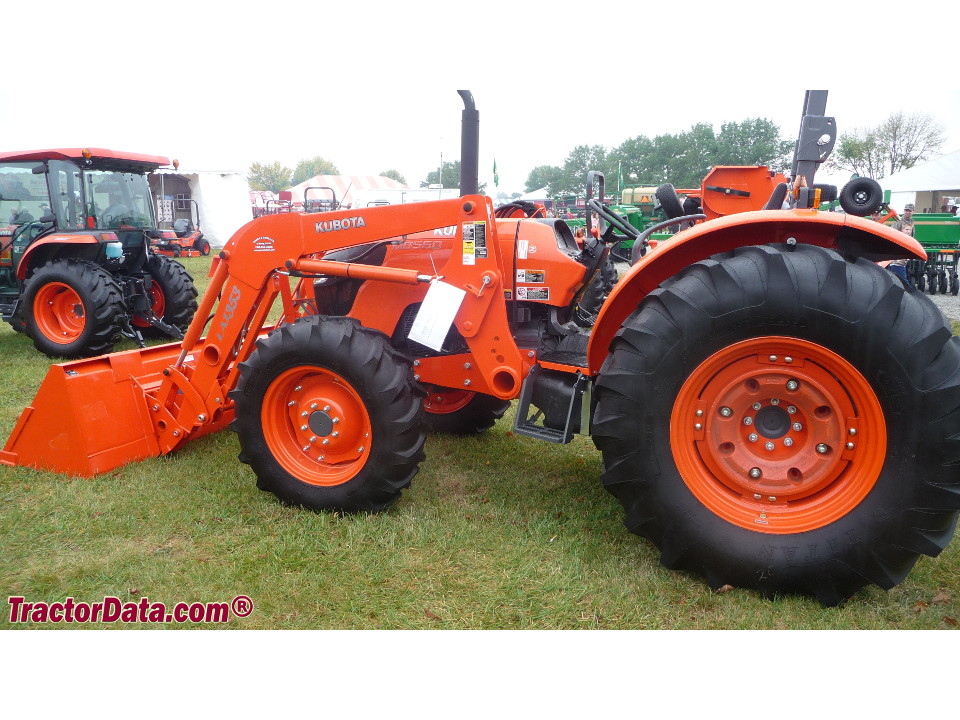

| Photos | |
 | |
 Kubota M8560 photos... | |
| Hydraulics | |
| Valves | 1 to 3 |
| ROPS Pump flow | 15.9 gpm 60.2 lpm |
| Cab Pump flow | 17 gpm 64.3 lpm |
| Tractor hitch | |
| Rear Type | II |
| Control | position control and top-link draft sensing |
| Rear lift (at 24"/610mm) | 4630 lbs 2100 kg |
| 7275 lbs (optional) 3299 kg | |
| Rear Arms | telescopic lower link ends |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | electro-hydraulic |
| Rear PTO Type | 540 (1.375 |
| 540/540E (1.375) | |
| 540/1000 (1.375) | |
| Dimensions & Tires | |
| ROPS Wheelbase | 90 inches 228 cm |
| Cab Wheelbase | 88.6 inches 225 cm |
| Weight | 5400 to 6680 pounds |
| Front tire | 7.50-18 |
| Rear tire | 16.9-30 (2WD) |
 Full dimensions and tires ... | |
| Kubota M8560 attachments | |
| front-end loader | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| ROPS Charging amps | 45 |
| Cab Charging amps | 60 |
| Optional Charging amps | 100 |
| Battery volts | 12 |
| References | |
 | |
| M8560/M9960 published in 2012, by Kubota |
