Tractors > New Holland > TS100A

New Holland TS100A

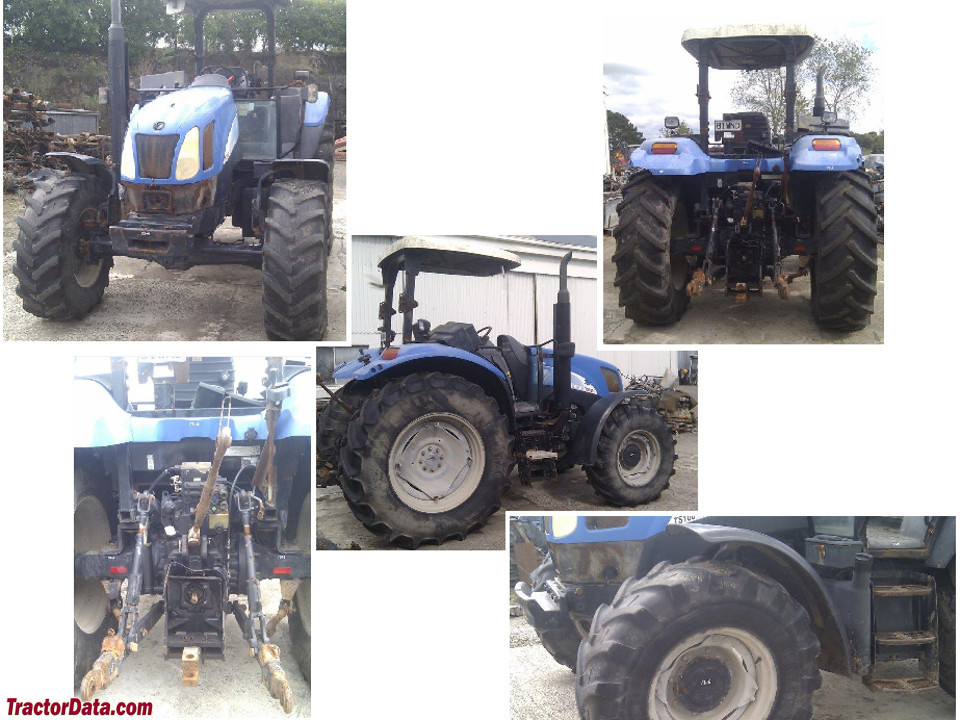

New Holland TS100A tractor photo
2003 - 2006   TS-A Series
Utility tractor
Series next:New Holland TS115A






Production:

Manufacturer:New Holland
Factory:Basildon, England


New Holland TS100A Engine:

   New Holland 4.5L 4-cyl diesel
full engine details ...


Capacity:

Fuel:46.7 gal [176.8 L]


3-Point Hitch:

Rear Type:II
Control:mechanical lower link
Rear lift:9285 lbs [4211 kg]


Power Take-off (PTO):

Rear PTO:independent
Clutch:electro-hydraulic wet disc
Rear RPM:540/1000


Dimensions & Tires:

2WD Wheelbase:93.3 inches [236 cm]
4WD Wheelbase:94.9 inches [241 cm]
Weight:9060 to 10383 pounds
full dimensions and tires ...


New Holland TS100A attachments:

 front-end loader
all TS100A attachments ...


TS100A Serial Numbers:


- Serial numbers unknown -



New Holland TS100A Power:

Engine (gross):100 hp [74.6 kW]
PTO (claimed):80 hp [59.7 kW]
Drawbar (tested):74.7 hp [55.7 kW]
PTO (tested):87.7 hp [65.4 kW]
power test details ...


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD
Differential lock:electro-hydraulic
Steering:power
Brakes:hydraulic wet disc
Cab:Two-post foldable ROPS. Cab available with air-conditioning.


Hydraulics:

Type:open center
 closed-center load sensing*Optional
Rear valves:2 to 4
Pump flow:19.8 gpm [74.9 lpm]
 26.5 gpm [100.3 lpm] (optional)
Steering flow:10.5 gpm [39.7 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:70 (ROPS)
 120 (Cab)


Battery:

Cold-cranking amps:1300
Volts:12
