New Holland TS100A Tests

New Holland TS100A tractor photo
2003 - 2006
TS-A Series
Utility tractor
Series map:
OCED Tractor Test 2241

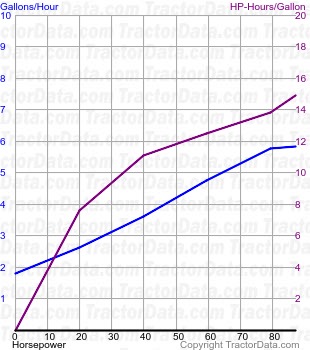

TS100A fuel use from test 497
OCED Tractor Test 2241
Diesel 12-speed 4WD
November 2004 - January 2005,
Link: OCED Tractor Test 2241 file
PTO performance
Max power87.7 hp
65.4 kW
Fuel use5.5 gal/hour
20.8 l/hour
Power at rated engine speed86.9 hp
64.8 kW
Fuel use5.8 gal/hour
22.0 l/hour
Power at rated PTO speed87.2 hp
65.0 kW
Fuel use5.7 gal/hour
21.6 l/hour
Drawbar performance
Max power74.7 hp
55.7 kW
Fuel use5.8 gal/hour
22.0 l/hour
Gear 2II used for power test.
Max pull12050 lbs
5465 kg
Gear 1I used for pull test.
