John Deere 2025R
| | 2013 - 2025 |
|
| 2R Series | | Compact Utility tractor |
|
Series map:
2025R
2032R
25.0hp
32.0hp
| Production |
| Manufacturer | John Deere
|
| Compact Utility tractor |
| Built in Augusta, Georgia, USA |
| Original price | $14,434 (2013 )
|
| $15,348 (2014 )
|
| John Deere 2025R Power |
| Engine (gross) | 24.2 hp
18.0 kW
|
| Engine | 25 hp
18.6 kW
|
| PTO (claimed) | 18 hp
13.4 kW
|
| Mechanical |
| Four-wheel drive |
| Final drives | spur gear
|
| Differential lock | standard
|
| Power steering |
| Wet disc brakes |
| Two-post foldable ROPS. |
| Capacity |
| Fuel | 6.1 gal
23.1 L
|
| Hydraulic system | 2.6 gal
9.8 L
|
| Front axle | 0.9 qts
0.9 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 2.6 gal
9.8 L
|
| Pressure | 2421 psi
166.9 bar
|
| Pump flow | 3.4 gpm
12.9 lpm
|
| Total flow | 5.6 gpm
21.2 lpm
|
| Steering flow | 2.2 gpm
8.3 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Control | position control
|
| Rear lift (at ends) | 1433 lbs
650 kg
|
| Rear lift (at 24"/610mm) | 1150 lbs
521 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | wet disc
|
| Rear PTO Type | 540
|
| Mid PTO | independent
|
| Mid PTO Type | 2000
|

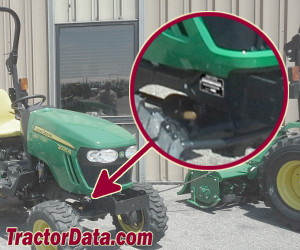

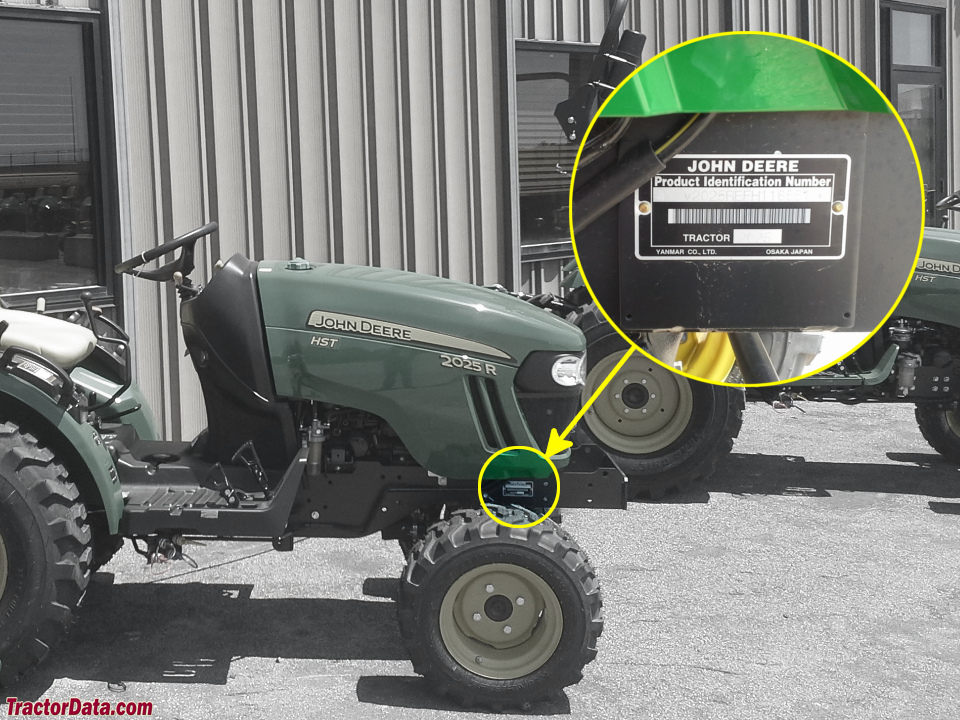

| 2025R Serial Number Location |
 |
| Right side of tractor frame, above and behind the front axle. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 20
|
| Charging volts | 12
|
| Battery CCA | 500
|
| Battery volts | 12
|
| References |
 |
| 2R Series published in 2013, by John Deere |
| 2R Series published in 2015, by John Deere |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on July 12, 2018 |
