Tractors > John Deere > 2025R

John Deere 2025R Engine



John Deere 2025R tractor photo
2013 - 2025
Model year
2R Series
Compact Utility tractor
Series map:
2025R
2032R
25.0hp
32.0hp
Engine Detail
Yanmar 3TNV80
diesel
3-cylinder
liquid-cooled
Displacement77.3 ci
1.3 L
Bore/Stroke3.15x3.31 inches
80 x 84 mm
Power25 hp
18.6 kW
Rated Power (gross)24.2 hp
18.0 kW
Fuel systemindirect injection
Air cleanerdual stage dry
Compression23.4:1
Rated RPM3000
Starterelectric
Starter volts12
Starter power1.6 hp
1.2 kW
Coolant capacity3.4 qts
3.2 L
Engine Oil

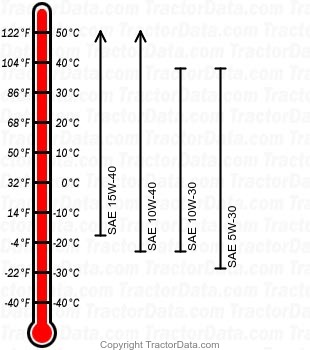

2025R diesel engine oil chart
Oil capacity3.4 qts
3.2 L
Oil change200 h
