Tractors > Yanmar > Ex450

Yanmar Ex450

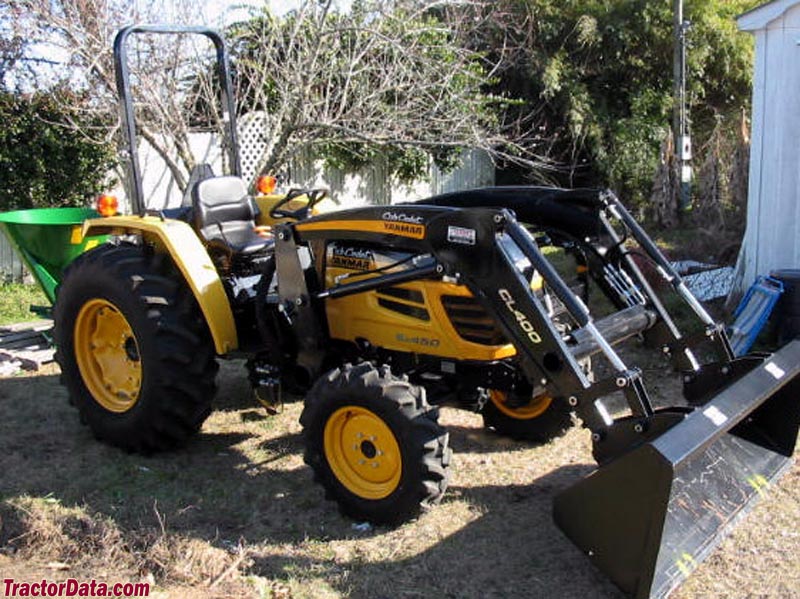

Yanmar Ex450 tractor photo
2012 -    Ex Series
Compact Utility tractor
Previous model:Cub Cadet Ex450






Production:

Manufacturer:Yanmar
Original price (USD):$21,299 (2009)


Yanmar Ex450 Engine:

   Yanmar 2.2L 4-cyl diesel
full engine details ...


Capacity:

Fuel:11.3 gal [42.8 L]
Front axle:8 qts [7.6 L]


3-Point Hitch:

Rear Type:1
Control:position control
Rear lift (at 24"/610mm):2,464 lbs [1117 kg]


Power Take-off (PTO):

Rear PTO:live
Clutch:dry dual stage
Rear RPM:540


Dimensions & Tires:

Wheelbase:72 inches [182 cm]
Weight:3,499 lbs [1587 kg]
Front tire:8-16
Rear tire:14.9-24
full dimensions and tires ...


Yanmar Ex450 attachments:

 front-end loader
 backhoe
all Ex450 attachments ...


Ex450 Serial Numbers:


- Serial numbers unknown -



Yanmar Ex450 Power:

Engine (gross):45 hp [33.6 kW]
PTO (claimed):37.5 hp [28.0 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Steering:hydraulic power
Brakes:wet disc
Cab:Two-post ROPS.


Hydraulics:

Type:open center
Valves:2 or 3
Pump flow:8.2 gpm [31.0 lpm]
Total flow:12.7 gpm [48.1 lpm]
Steering flow:4.5 gpm [17.0 lpm]


Electrical:

Ground:negative


Battery:

Number:1
Volts:12
