Tractors > John Deere > 6230 Premium

John Deere 6230 Premium

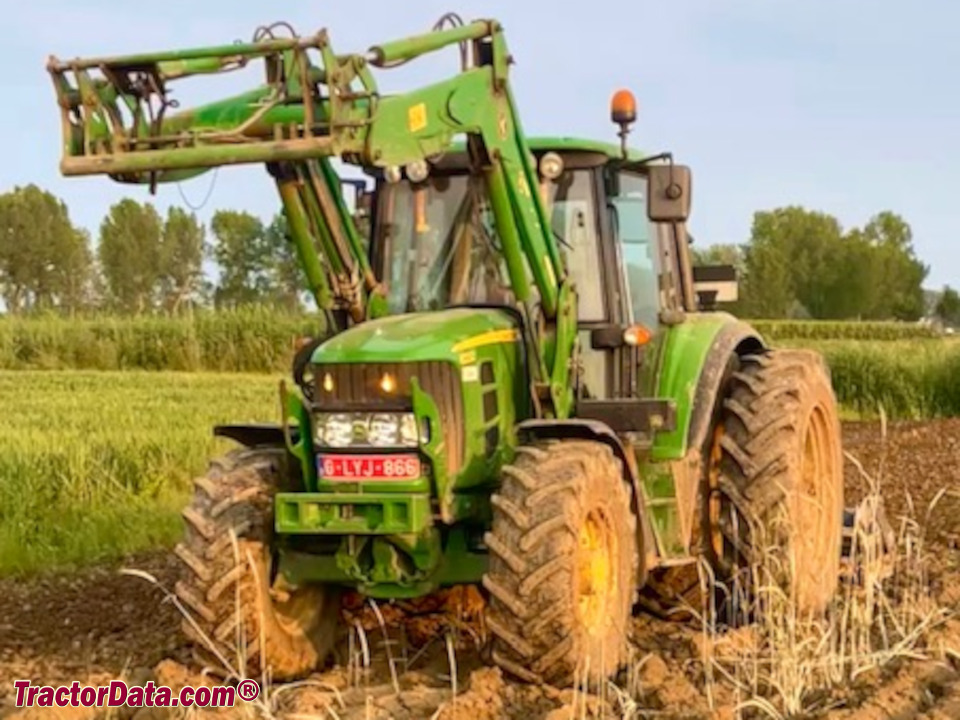

John Deere 6230 Premium tractor photo
2007 - 2012   6030 Series
Model years
Series next:John Deere 6330 Premium






Production:

Manufacturer:John Deere
Factory:Mannheim, Baden-W├╝rttemberg, Germany
Original price (USD):$73,773 (2010)


Variants:

6230:basic tractor


John Deere 6230 Premium Engine:

   John Deere 4.5L 4-cyl diesel
full engine details ...


Capacity:

Fuel:48 gal [181.7 L]
Hydraulic system:13.2 gal [50.0 L]
 15.9 gal [60.2 L] (IVT)


3-Point Hitch:

Rear Type:II
 IIIN/II (optional)
Rear lift (at 24"/610mm):4,450 lbs [2018 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540/1000
 540/540E/1000 (optional)
Front PTO:optional
Front RPM:1000


Dimensions & Tires:

Wheelbase:94.5 inches [240 cm]
Weight:9182 to 9678 pounds
Front tire:10.00-16
Rear tire:16.9R30
full dimensions and tires ...


John Deere 6230 Premium attachments:

 front-end loader
all 6230 Premium attachments ...


6230 Premium Serial Numbers:

Location:On the front-right of the main tractor frame, above the front axle.

- Serial numbers unknown -



John Deere 6230 Premium Power:

Engine (gross):94 hp [70.1 kW]
PTO (claimed):75 hp [55.9 kW] (2-valve)
 85 hp [63.4 kW] (4-valve)
Drawbar (tested):67.0 hp [50.0 kW]
PTO (tested):95.9 hp [71.5 kW]
power test details ...


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD (optional)
Steering:hydrostatic power
Brakes:differential hydraulic wet disc
Cab:ComfortGard Cab standard.


Hydraulics:

Type:closed-center pressure and flow compensated (PFC)
Capacity:13.2 gal [50.0 L]
 15.9 gal [60.2 L] (IVT)
Pressure:2900 psi [200.0 bar]
Rear valves:2 to 4
Pump flow:29 gpm [109.8 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:115
Charging volts:14


Battery:

Volts:12
