    New Holland Workmaster 55

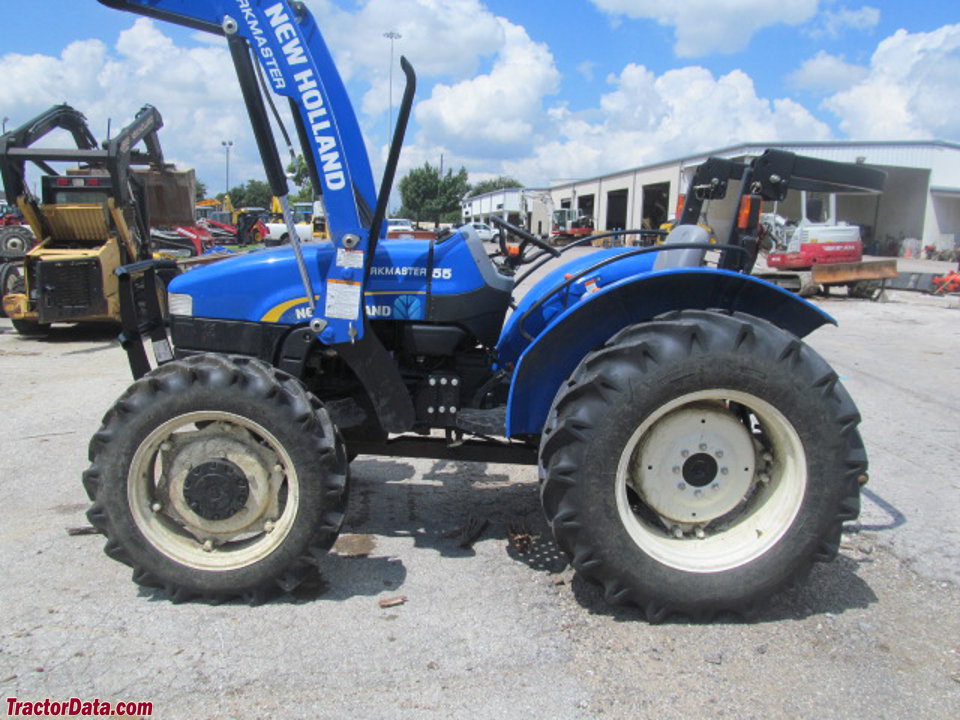

    New Holland Workmaster 55 tractor photo
    2009 -    Workmaster Series
    Utility tractor
    Previous model:New Holland TT50A
    Next model:New Holland Workmaster 65
    Smaller:New Holland Workmaster 45






    Production:

    Manufacturer:New Holland
    Factory:India


    New Holland Workmaster 55 Engine:

       ISM 2.2L 4-cyl diesel
    full engine details ...


    Capacity:

    Fuel:13.5 gal [51.1 L]


    3-Point Hitch:

    Rear Type:2/1
    Control:position control and mechanical draft sensing
    Rear lift (at 24"/610mm):2,580 lbs [1170 kg]


    Power Take-off (PTO):

    Rear PTO:independent
    Rear RPMs:540


    Dimensions & Tires:

    Weight:3770 to 4078 pounds
    Front tire:7.5x16
    Rear tire:14.9x28 (2WD)
    full dimensions and tires ...


    New Holland Workmaster 55 attachments:

     front-end loader
    all Workmaster 55 attachments ...


    Workmaster 55 Serial Numbers:


    - Serial numbers unknown -



    New Holland Workmaster 55 Power:

    Engine (gross):55 hp [41.0 kW]
    PTO (claimed):47.5 hp [35.4 kW]
    PTO (tested):49.36 hp [36.8 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
     4x4 MFWD 4WD (optional)
    Differential lock:mechanical rear differential lock with foot pedal, limited slip front axle (4WD)
    Steering:hydrostatic power
    Brakes:differential mechanical wet disc
    Cab:Two-post foldable ROPS


    Hydraulics:

    Type:open center fixed displacement
    Valves:1 or 2
    Pump flow:11.6 gpm [43.9 lpm]
    Total flow:16.9 gpm [64.0 lpm]
    Steering flow:5.3 gpm [20.1 lpm]


    Electrical:

    Ground:negative
    Charging system:alternator
    Charging amps:55
    Charging volts:12


    Battery:

    Number:1
    Cold-cranking amps:800
    Volts:12
