Tractors > New Holland > 8970

New Holland 8970 - transmission

New Holland 8970 tractor photo
1993 - 2002   70 Genesis Series
Row-Crop tractor
Previous model:Ford 8970
Series back:New Holland 8870
more New Holland 8970 specifications...





Note: the New Holland model 8970 is the same as the Ford 8970. The following data is from the 8970 listing.


Transmission:

Type:full power shift
Gears:16 forward and 8 reverse
Speeds:With 18.4-42 rear tires.

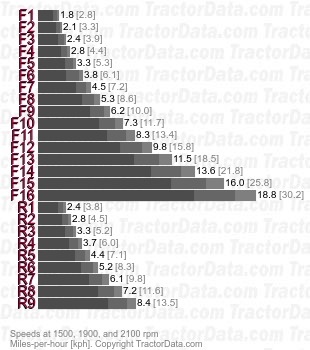

8970  full power shift speeds


Transmission:

Type:creeper
Gears:32 forward and 18 reverse
Creeper range added to standard power shift transmission. With tractor in neutral and inching pedal pressed, toggle button is used to enter/exit creeper range.
