New Holland 8970 Engine


New Holland 8970 tractor photo
1993 - 2000
70 Genesis Series
Row-Crop tractor
Series map:
8870
8970
210.0hp
240.0hp

Note: the New Holland model 8970 is the same as the Ford 8970. The following data is from the 8970 listing.
Engine Detail
Ford
turbocharged diesel
6-cylinder
liquid-cooled
Displacement456 ci
7.5 L
Bore/Stroke4.4x5.0 inches
112 x 127 mm
Power240 hp
179.0 kW
Compression17.5:1
Rated RPM2100
Firing order1-5-3-6-2-4
Starter volts12
Starter power6 hp
4.5 kW
Coolant capacity26.4 qts
25.0 L
Intake valve clearance0.014 inches (cold)
0.356 mm
Exhaust valve clearance0.017 inches (cold)
0.432 mm
Engine Oil

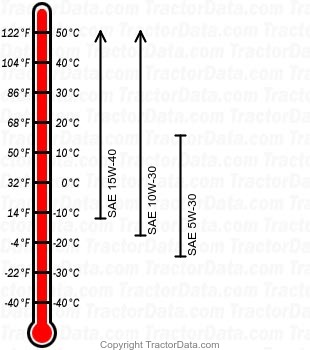

8970 diesel engine oil chart
Oil capacity22 qts
20.8 L
