    CaseIH Farmall 55A - transmission

    CaseIH Farmall 55A tractor photo
    2010 -    Farmall A Series
    Utility tractor
    Larger:CaseIH Farmall 65A
    Smaller:CaseIH Farmall 45A
    more CaseIH Farmall 55A specifications...






    Transmission:

    Type:synchronized shuttle
    Gears:8 forward and reverse
    Clutch:11-inch dry disc
    Four gears in two ranges. Synchronized mechanical shuttle with left-hand lever. Tractor must be stopped to shift gears or ranges.
    Speeds:Reverse speeds about 5% faster than forward.

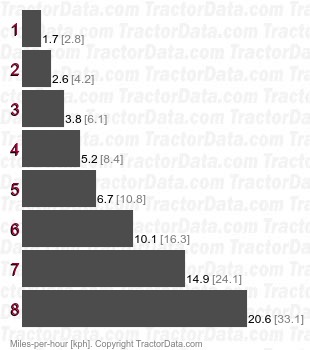

    Farmall 55A synchronized shuttle speeds
