CaseIH Farmall 60A Transmission

CaseIH Farmall 60A tractor photo
2015 -
Farmall A Series
Utility tractor
Farmall 55A
Series:Farmall 50AFarmall 60AFarmall 70A
Type:mechanical shuttle
Gears:8 forward and reverse
Clutch:279mm mechanical dry disc
Four gears in two ranges with shuttle.
Reverse speeds are about 5% faster than forward.

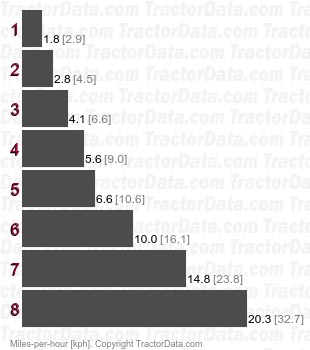

Farmall 60A  mechanical shuttle speeds
