Tractors > CaseIH > Farmall 45A

CaseIH Farmall 45A Transmission



CaseIH Farmall 45A tractor photo
2010 - 2015
Farmall A Series
Utility tractor
Series map:
Farmall 45A
Farmall 55A
45.0hp
55.0hp
Transmission
Typesynchronized shuttle
Gears8 forward and reverse
Clutch11-inch dry disc
Four gears in two ranges. Synchronized mechanical shuttle with left-hand lever. Tractor must be stopped to shift gears or ranges.
Speeds
Reverse speeds about 5% faster than forward.

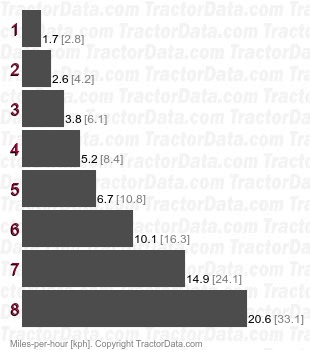

Farmall 45A synchronized shuttle speeds
