CaseIH Farmall 45A

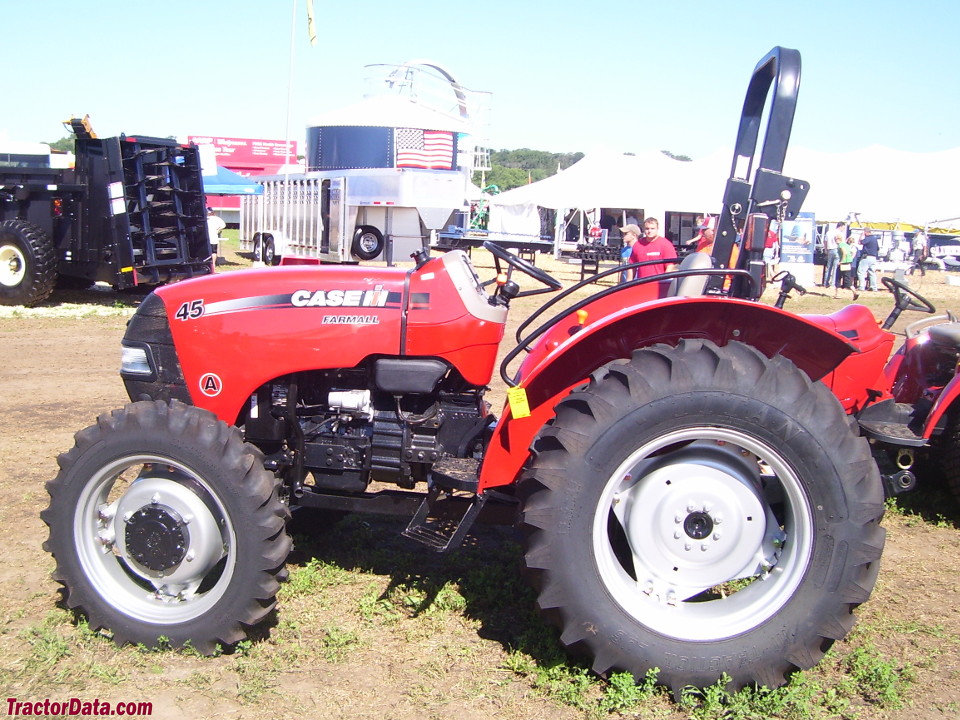

CaseIH Farmall 45A tractor photo
2010 -    Farmall A Series
Utility tractor
Series next:CaseIH Farmall 55A






Production:

Manufacturer:CaseIH
Factory:India


CaseIH Farmall 45A Engine:

   ISM 2.2L 4-cyl diesel
full engine details ...


Capacity:

Fuel:13.5 gal [51.1 L]


3-Point Hitch:

Rear Type:2/1
Control:position control
Rear lift (at 24"/610mm):1,830 lbs [830 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540


Dimensions & Tires:

Weight:3527 to 3836 pounds
Front tire:6x16
2WD Rear tire:12.4x28
full dimensions and tires ...


CaseIH Farmall 45A attachments:

 front-end loader
all Farmall 45A attachments ...


Farmall 45A Serial Numbers:


- Serial numbers unknown -



CaseIH Farmall 45A Power:

Engine (gross):45 hp [33.6 kW]
PTO (claimed):39 hp [29.1 kW]


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD (optional)
Differential lock:mechanical rear differential lock with foot pedal, limited slip 4WD front axle
Steering:hydrostatic power
Brakes:differential mechanical wet disc
Cab:Two-post foldable ROPS.


Hydraulics:

Type:open center fixed displacement gear pump
Valves:1 or 2
Pump flow:11.6 gpm [43.9 lpm]
Total flow:16.9 gpm [64.0 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:40


Battery:

Number:1
Cold-cranking amps:800
Volts:12
