Tractors > New Holland > T5060
      -Brand search:


    New Holland T5060

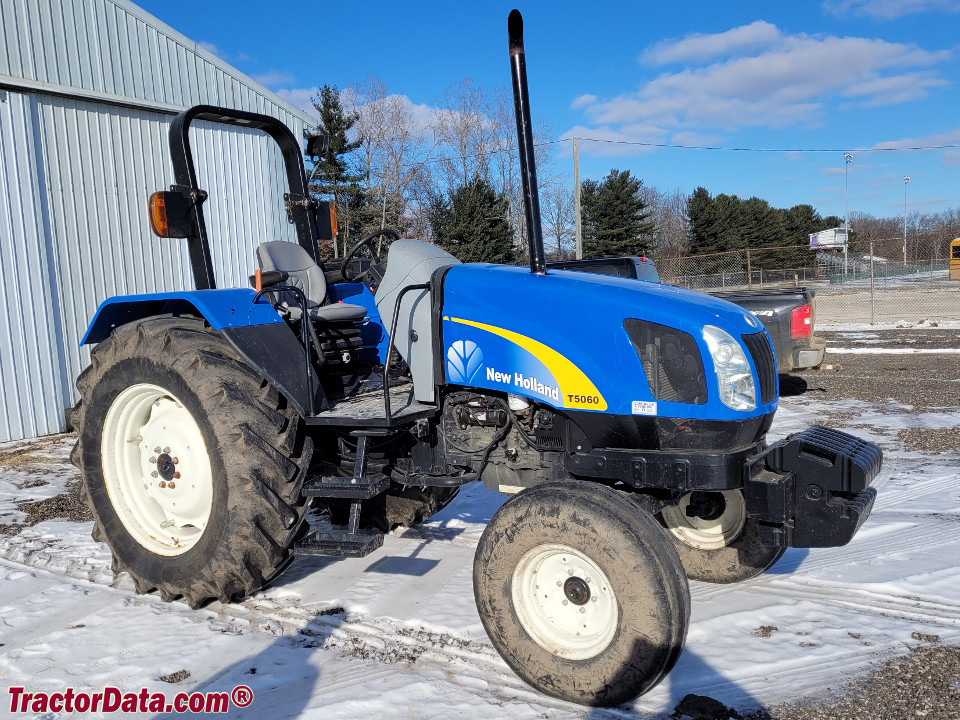

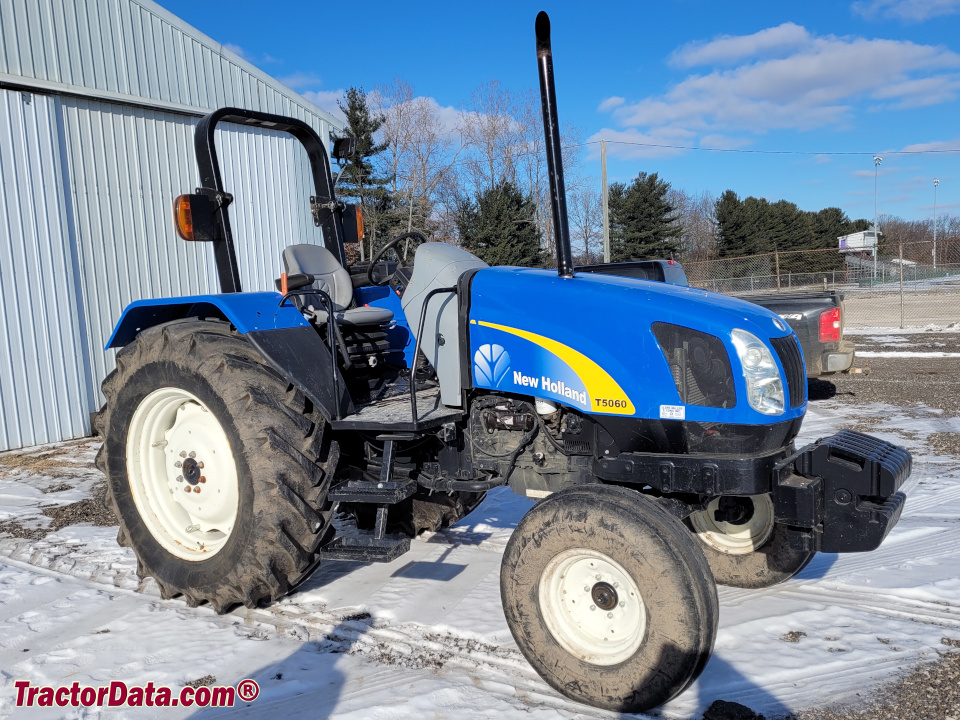

    New Holland T5060 tractor photo
    2008 - 2013   T5000 Series
    Utility tractor
    Next model:New Holland T5.105
    Larger:New Holland T5070
    Smaller:New Holland T5050






    Production:

    Manufacturer:New Holland
    Factory:Jesi, Italy


    New Holland T5060 Engine:

       New Holland 4.5L 4-cyl diesel
    full engine details ...


    Capacity:

    Fuel:33.5 gal [126.8 L]


    3-Point Hitch:

    Rear Type:II
    Control:mechanical lower-link draft sensing
    Rear lift (at 24"/610mm):5,475 lbs [2483 kg]
     6,805 lbs [3086 kg] (optional)


    Power Take-off (PTO):

    Rear PTO:independent
    Clutch:mechanical
     electrohydraulic optional
    Rear RPM:540/1000 (1.375)
    Engine RPM:540@2199
    1000@2261


    Dimensions & Tires:

    Wheelbase:92.5 inches [234 cm]
    full dimensions and tires ...


    New Holland T5060 attachments:

     front-end loader
    all T5060 attachments ...


    T5060 Serial Numbers:


    - Serial numbers unknown -



    New Holland T5060 Power:

    Engine (gross):105 hp [78.3 kW]
    PTO (claimed):90 hp [67.1 kW]
    Drawbar (tested):76.6 hp [57.1 kW]
    PTO (tested):94.4 hp [70.4 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
     4x4 MFWD 4WD (optional)
    Differential lock:mechanical rear standard
     optional electrohydraulic front and rear
    Steering:hydrostatic power
    Brakes:hydraulic wet disc
    Cab:Flat deck platform with ROPS. Cab optional with heat and air-conditioning.


    Hydraulics:

    Type:open center
    Pressure:2,871 psi [198.0 bar]
    Rear valves:2 to 3 (open or closed center)
    Mid valves:0 to 2
    Pump flow:16.1 gpm [60.9 lpm]
    Steering flow:10.4 gpm [39.4 lpm]


    Electrical:

    Ground:negative
    Charging system:alternator
    Charging amps:120


    Battery:

    Number:1
    Cold-cranking amps:960
    Volts:12
