Fiat 55-76 Transmission



Fiat 55-76 tractor photo
1990 - 1992
76 Series
Orchard/Vineyard tractor
Series:45-76 ← 55-76 → 60-76
Transmissions overview
12-speed partially synchronized
12-speed mechanical shuttle
20-speed creeper
Transmission
Type:partially synchronized
Gears:12 forward and 4 reverse
Clutch:254mm dry disc

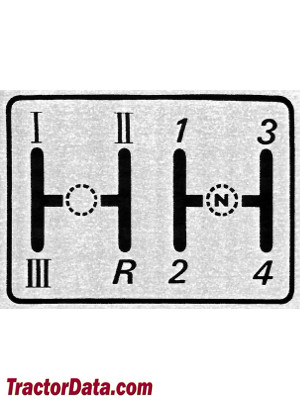

Four synchronized gears (1-4) in three ranges (I-III) plus reverse range. Tractor must be stopped, and clutch used, to shift range.
Speeds
With 9.5/9-28 rear tires.

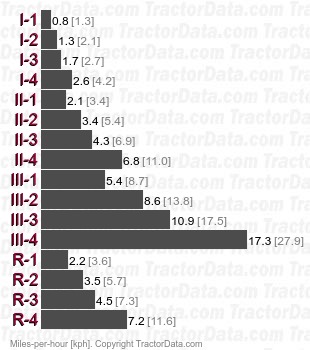

55-76 partially synchronized speeds
Transmission
Type:mechanical shuttle
Gears:12 forward and reverse
Clutch:254mm dry disc
Four synchronized gears (1-4) in three ranges (I-III) with mechanical reverser.
Speeds
With 9.5/9-28 rear tires.
55-76 mechanical shuttle speeds
Transmission
Type:creeper
Gears:20 forward and 8 reverse
Clutch:254mm dry disc
Optional creeper range for the standard 12-speed transmission.
Speeds
With 9.5/9-28 rear tires.

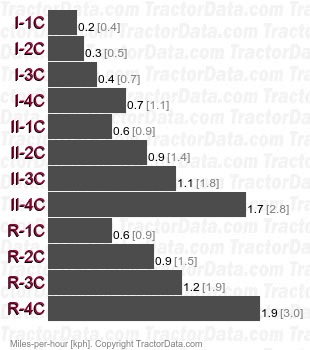

55-76 creeper speeds
