Series: | 45-76 | → 55-76 |
Transmissions overview | |
12-speed partially synchronized | |
12-speed mechanical shuttle | |
20-speed creeper |
Transmission | |
Type: | partially synchronized |
Gears: | 12 forward and 4 reverse |
Clutch: | 254mm dry disc |
Four synchronized gears (1-4) in three ranges (I-III) plus reverse range. Tractor must be stopped, and clutch used, to shift range. |

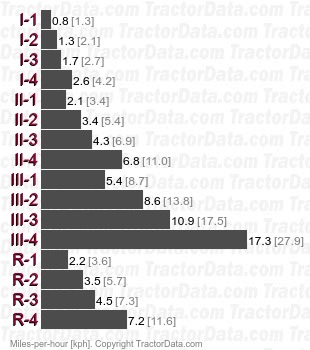

Speeds | |
With 9.5/9-28 rear tires. | |
Transmission | |
Type: | mechanical shuttle |
Gears: | 12 forward and reverse |
Clutch: | 254mm dry disc |
Four synchronized gears (1-4) in three ranges (I-III) with mechanical reverser. |

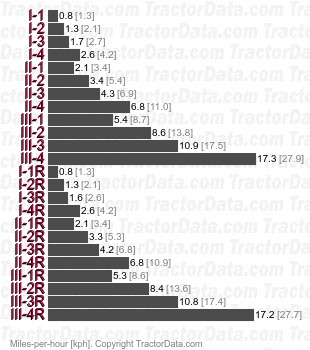

Speeds | |
With 9.5/9-28 rear tires. | |
Transmission | |
Type: | creeper |
Gears: | 20 forward and 8 reverse |
Clutch: | 254mm dry disc |
Optional creeper range for the standard 12-speed transmission. |

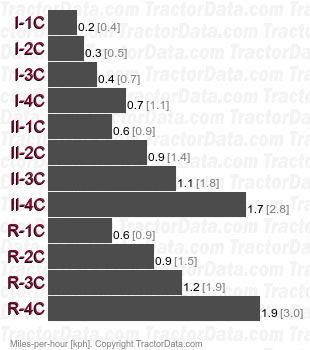

Speeds | |
With 9.5/9-28 rear tires. | |
