    CaseIH Magnum 305

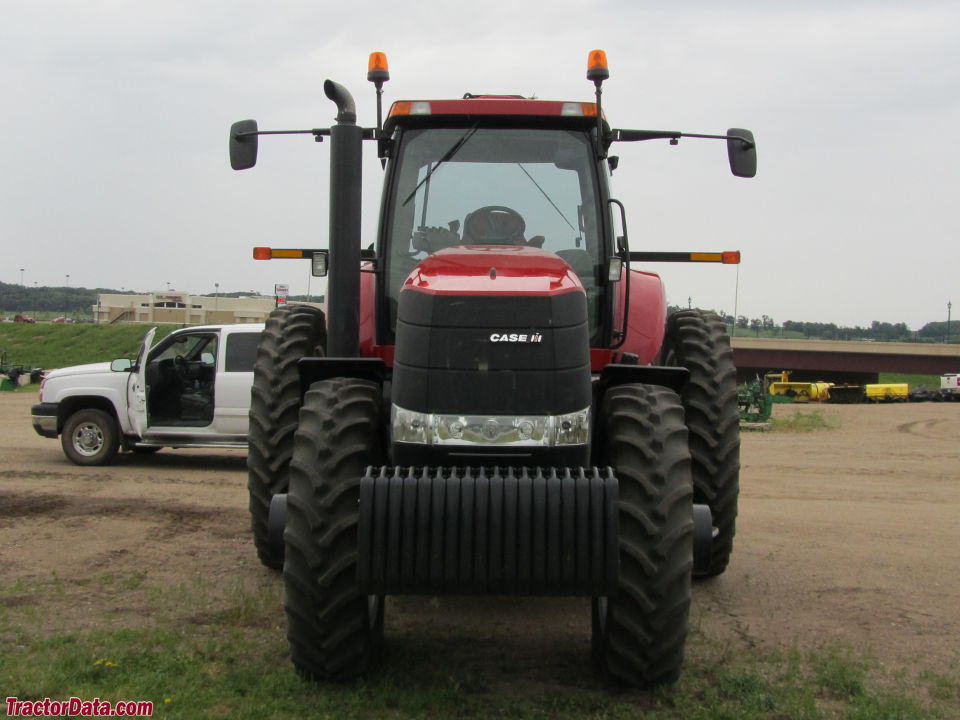

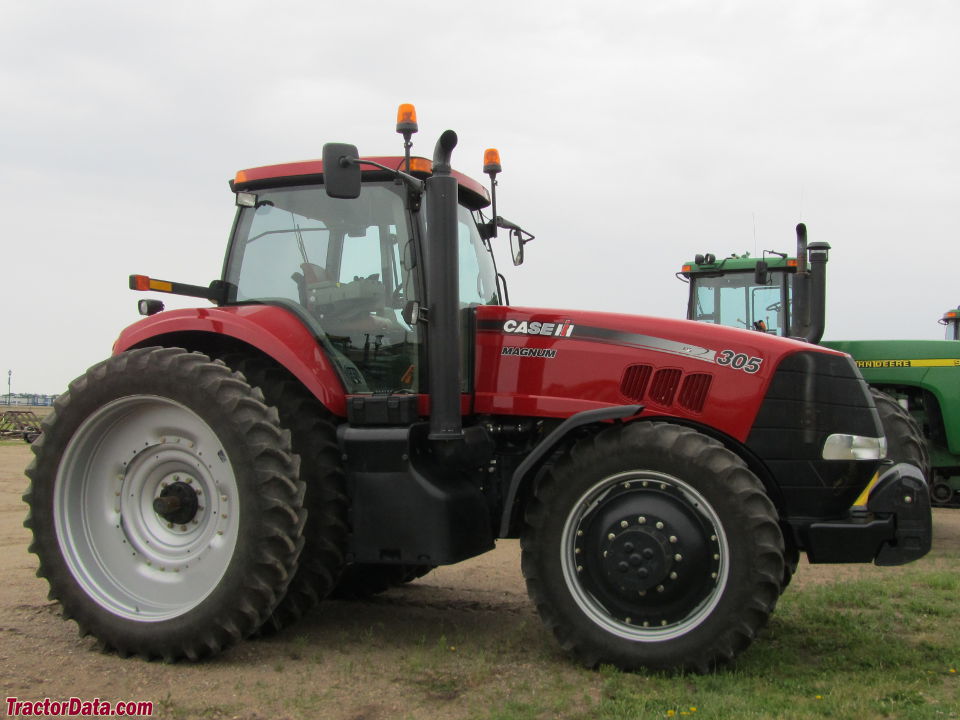

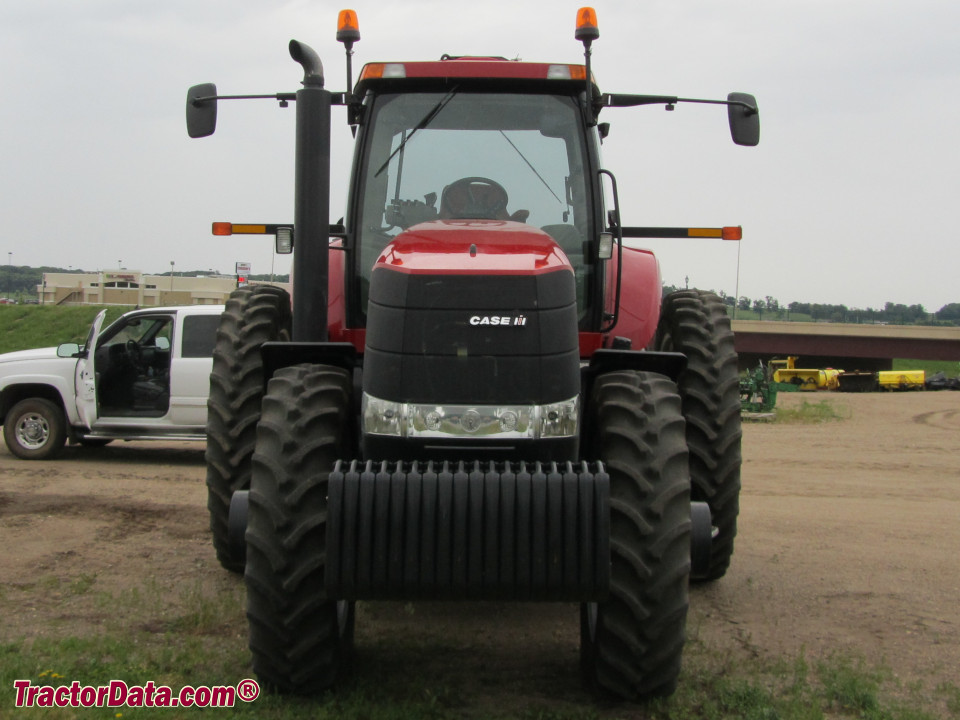

    CaseIH Magnum 305 tractor photo
    2008 - 2011   Magnum Series
    Row-Crop tractor
    Previous model:CaseIH MX305
    Next model:CaseIH Magnum 315
    Series next:CaseIH Magnum 335
    Series back:CaseIH Magnum 275






    Production:

    Manufacturer:CaseIH
    Factory:Racine, Wisconsin, USA
    Original price (USD):$221,592 (2010)


    CaseIH Magnum 305 Engine:

       CNH 8.9L 6-cyl diesel
    full engine details ...


    Capacity:

    Fuel:180 gal [681.3 L]
    Hydraulic system:45.5 gal [172.2 L]


    3-Point Hitch:

    Rear Type:III/IIIN
     IVN/III optional
    Rear lift:14,070 lbs [6382 kg]
     16,375 lbs [7427 kg] (optional)
     18,900 lbs [8573 kg] (optional)


    Power Take-off (PTO):

    Rear RPM:1000
     540/1000 optional


    Dimensions & Tires:

    Wheelbase:118.3 inches [300 cm]
    Weight:20630 to 33415 pounds
    Front tire:380/80R38
    Rear tire:480/80R50
    full dimensions and tires ...


    Magnum 305 Serial Numbers:

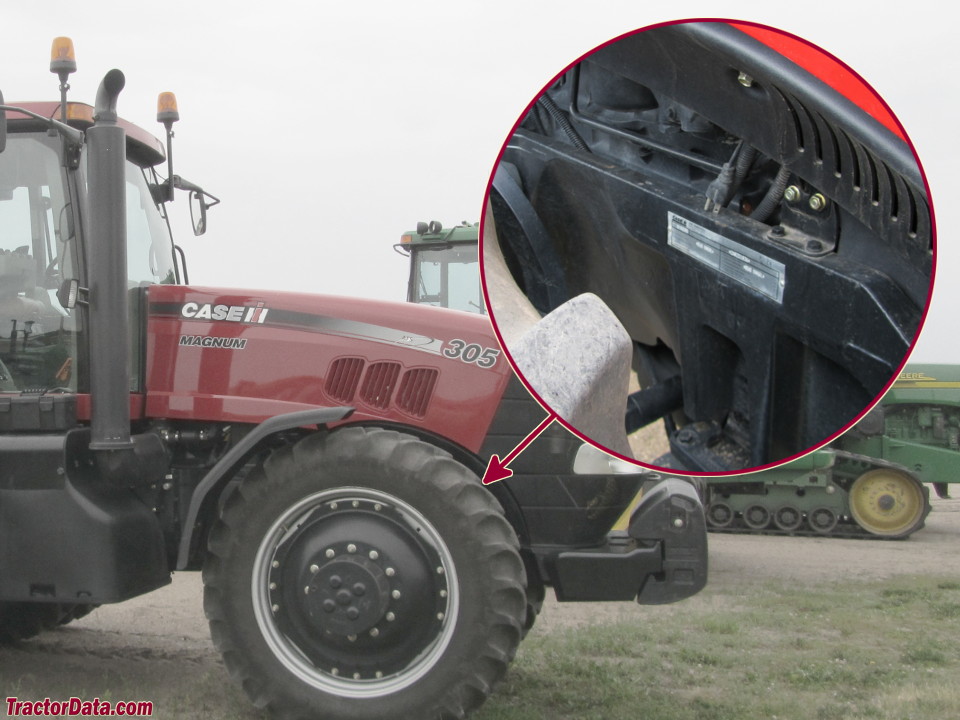

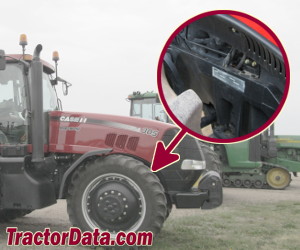

    Location:Front-right tractor frame, above axle.

    - Serial numbers unknown -



    CaseIH Magnum 305 Power:

    Engine:304 hp [226.7 kW]
    PTO (claimed):255 hp [190.2 kW]
    Drawbar (tested):220.34 hp [164.3 kW]
    PTO (tested):299.70 hp [223.5 kW]
    power test details ...


    Mechanical:

    Chassis:4x4 MFWD 4WD
    Steering:hydrostatic power
    Brakes:differential hydraulic wet disc
    Cab:Cab standard wth heat and A/C. Optional lucury cab with red or grey leather seat, tinted rear window, and leather-wrapped controls.


    Hydraulics:

    Type:PFC
    Capacity:45.5 gal [172.2 L]
    Valves:3 to 5
    Total flow:44 gpm [166.5 lpm]
     59 gpm [223.3 lpm] (optional)
     75 gpm [283.9 lpm] (optional Twin-Flow)


    Battery:
