Tractors > CaseIH > Magnum 305

CaseIH Magnum 305 Tests



CaseIH Magnum 305 tractor photo
2008 - 2011
Magnum Series
Row-Crop tractor
Series map:
Magnum 275
Magnum 305
Magnum 335
275.0hp
304.0hp
330.0hp
OCED Tractor Test 1912

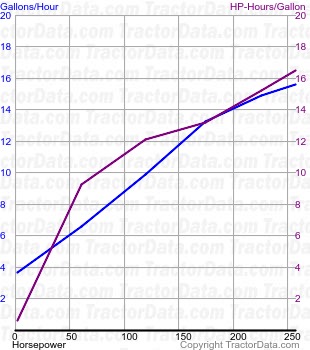

Magnum 305 fuel use from test 584
OCED Tractor Test 1912
Diesel 19-speed 4WD
October 24 - November 14, 2007
Link: OCED Tractor Test 1912 file
PTO performance
Max power299.70 hp
223.5 kW
Fuel use17.0 gal/hour
64.3 l/hour
Power at rated engine speed256.66 hp
191.4 kW
Fuel use15.6 gal/hour
59.0 l/hour
Power at rated PTO speed299.70 hp
223.5 kW
Fuel use17.0 gal/hour
64.3 l/hour
Drawbar performance
Max power220.34 hp
164.3 kW
Fuel use15.6 gal/hour
59.0 l/hour
Gear 9 used for power test.
