    Ford 8630 - transmission

    Ford 8630 tractor photo
    1990 - 1993   30 Series
    Row-Crop tractor
    Previous model:Ford TW-15
    Larger:Ford 8730
    Smaller:Ford 8530
    more Ford 8630 specifications...






    Transmission:

    Transmission:Funk Ultra Command
    Gears:18 forward and 9 reverse
    Oil capacity:100.4 qts [95.0 L]
    The Ford Ultra Command Powershift allows on-the-move shifting between gears, and shuttle shifting, without a clutch. A single lever controls the transmission; moving it to the left shifts down, to the right shifts up. Pushing forward increases forward throttle while pulling it back moves the tractor in reverse. An inching pedal is used for precise movements.
    Speeds:18.4/15-38 rear tires.
    8630 Ultra Command  speeds


    Transmission:

    Transmission:Dual Power - constant mesh
    Gears:16 forward and 4 reverse
    Oil capacity:80 qts [75.7 L] (2WD)
     85.5 qts [80.9 L] (4WD)
    The Dual Power transmission provides a 'Powerdrive' low range to the basic constant mesh transmission. A foot switch next to the clutch is used to engage and disengage the mode, and may be switched while the tractor is in motion. A "rabbit" or "turtle" display light on the instrument panel indicates which mode the transmission is selected.
    Speeds:18.4/15-38 rear tires.
    8630 Dual Power - constant mesh  speeds


    Transmission:

    Transmission:Constant mesh
    Gears:8 forward and 2 reverse
    Oil capacity:72.8 qts [68.9 L] (2WD)
     87.3 qts [82.6 L] (4WD)
    Tranmission is operated with two levers and the clutch pedal. Left lever selects high, low, or the optional creeper range. Right lever selects one of four forward gears, or reverse. Tractor must be stopped to make gear or range changes.
    Speeds:18.4/15-38 rear tires.

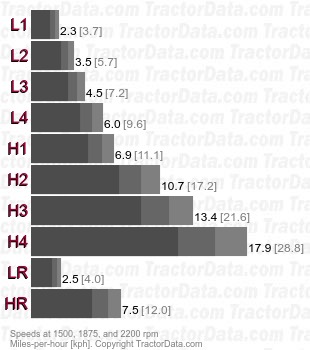

    8630 Constant mesh  speeds
