Ford 8630 Tests

Ford 8630 tractor photo
1990 - 1993
8030 Series
Row-Crop tractor
Nebraska Tractor Test 1536

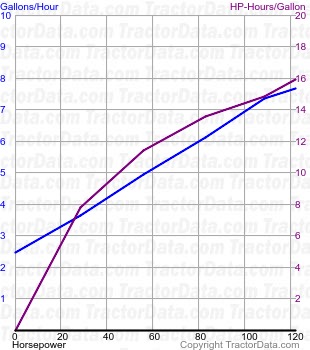

8630 fuel use from test 1536
Nebraska Tractor Test 1536
Diesel 16-speed 4WD
September 10 - 18, 1984
Link: Nebraska Tractor Test 1536 file
PTO performance
Power at rated engine speed:121.25 hp
90.4 kW
Fuel use:7.6 gal/hour
28.8 l/hour
Power at rated PTO speed:115.58 hp
86.2 kW
Fuel use:1.0 gal/hour
3.8 l/hour
Drawbar performance
Max power:105.76 hp
78.9 kW
Fuel use:7.6 gal/hour
28.8 l/hour
Gear 5L used for power test.
Max pull:15,939 lbs
7229 kg
Gear 1H used for pull test.
