Tractors > Ford > 8530

Ford 8530 - tests

Ford 8530 tractor photo
1990 - 1993   8030 Series
Row-Crop tractor
Previous model:Ford TW-5
Series next:Ford 8630
more Ford 8530 specifications...






Nebraska Tractor Test 1514:

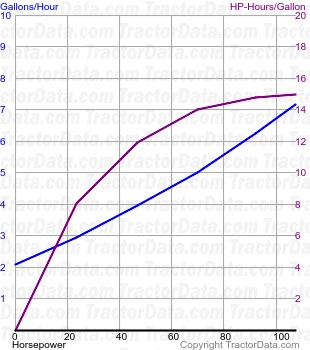

8530 fuel use from test 1514
Test Date:April 26 - May 16, 1984
Type:Diesel 16-speed 2WD
PTO power (rated engine speed):105.74 hp [78.9 kW]
PTO fuel use (engine speed):7.1 gal/hour [26.9 l/hour]
PTO power (rated PTO speed):96.83 hp [72.2 kW]
PTO fuel use (PTO speed):6.2 gal/hour [23.5 l/hour]
Drawbar power (max):92.62 hp [69.1 kW]
Drawbar fuel use (max):7.0 gal/hour [26.5 l/hour]
Drawbar pull (max):12,249 lbs [5556 kg]
Max pull gear:2L
Test report:PDF file
